5.4.1 DNS Stack

DNS Stack - Route 53 Hosted Zone

Overview

The DNS Stack is the foundation layer (Phase 1) of the EveryoneCook infrastructure. It manages the Route 53 Hosted Zone for the everyonecook.cloud domain, providing DNS infrastructure that all other stacks depend on.

Deployment Order: This stack MUST be deployed first before any other stacks.

Key Responsibilities

  • Create and manage Route 53 Public Hosted Zone
  • Export Hosted Zone ID and name for cross-stack references
  • Provide nameservers for domain delegation from Hostinger

What This Stack Does NOT Include

  • SES Email Identity (managed by Auth Stack - Phase 3)
  • DKIM/SPF/DMARC records (managed by Auth Stack - Phase 3)
  • ACM Certificates (managed by Certificate Stack - Phase 1.5)
  • Application DNS records (managed by respective stacks)

Architecture

┌─────────────────────────────────────────────────────────┐
│                    Hostinger Domain                      │
│                  everyonecook.cloud                      │
│                                                          │
│  ┌────────────────────────────────────────────────┐    │
│  │  Domain Registrar Settings                      │    │
│  │  • Update Nameservers to Route 53 NS records   │    │
│  └────────────────┬───────────────────────────────┘    │
└───────────────────┼──────────────────────────────────────┘
                    │ DNS Delegation
                    ▼
┌─────────────────────────────────────────────────────────┐
│           AWS Route 53 Hosted Zone                       │
│           everyonecook.cloud                             │
│                                                          │
│  Resources Created:                                      │
│  • Public Hosted Zone                                   │
│  • 4 Nameserver (NS) Records                            │
│  • SOA Record (automatic)                               │
│                                                          │
│  Exports:                                                │
│  • Hosted Zone ID → Used by Certificate Stack          │
│  • Hosted Zone Name → Used by other stacks             │
│  • Nameservers → Configure at Hostinger                │
└─────────────────────────────────────────────────────────┘

Stack Configuration

File Structure

infrastructure/lib/stacks/
└── dns-stack.ts          # DNS Stack implementation

Code Implementation

File: infrastructure/lib/stacks/dns-stack.ts

import * as cdk from 'aws-cdk-lib';
import { Construct } from 'constructs';
import { BaseStack, BaseStackProps } from '../base-stack';

export class DnsStack extends BaseStack {
  public readonly hostedZone: cdk.aws_route53.IHostedZone;

  constructor(scope: Construct, id: string, props: BaseStackProps) {
    super(scope, id, props);

    // Add stack-specific tags
    cdk.Tags.of(this).add('StackType', 'DNS');
    cdk.Tags.of(this).add('Layer', 'Foundation');
    cdk.Tags.of(this).add('CostCenter', `DNS-${this.config.environment}`);

    // Create Route 53 Hosted Zone
    this.hostedZone = this.createHostedZone();

    // Export stack outputs
    this.exportOutputs();
  }

  private createHostedZone(): cdk.aws_route53.IHostedZone {
    // Extract root domain from environment config
    const rootDomain = this.config.domains.frontend
      .replace(/^(dev\.|staging\.)/, ''); // everyonecook.cloud

    const hostedZone = new cdk.aws_route53.PublicHostedZone(
      this,
      'HostedZone',
      {
        zoneName: rootDomain,
        comment: `Hosted Zone for Everyone Cook ${this.config.environment} environment`,
      }
    );

    cdk.Tags.of(hostedZone).add('Component', 'DNS');
    cdk.Tags.of(hostedZone).add('ManagedBy', 'CDK');

    return hostedZone;
  }

  private exportOutputs(): void {
    // Export Hosted Zone ID
    new cdk.CfnOutput(this, 'HostedZoneId', {
      value: this.hostedZone.hostedZoneId,
      exportName: this.exportName('HostedZoneId'),
      description: 'Route 53 Hosted Zone ID',
    });

    // Export Hosted Zone Name
    new cdk.CfnOutput(this, 'HostedZoneName', {
      value: this.hostedZone.zoneName,
      exportName: this.exportName('HostedZoneName'),
      description: 'Domain name managed by Route 53',
    });

    // Export Nameservers (for Hostinger configuration)
    new cdk.CfnOutput(this, 'NameServers', {
      value: cdk.Fn.join(', ', this.hostedZone.hostedZoneNameServers || []),
      description: '⚠️ Update these nameservers at Hostinger',
    });
  }
}

Key Configuration Details

1. Domain Extraction Logic

The stack automatically extracts the root domain from the environment configuration:

// Environment config: dev.everyonecook.cloud
// Extracted domain: everyonecook.cloud
const rootDomain = this.config.domains.frontend.replace(/^(dev\.|staging\.)/, '');

Environments:

  • Dev: dev.everyonecook.cloud → Hosted Zone: everyonecook.cloud
  • Staging: staging.everyonecook.cloud → Hosted Zone: everyonecook.cloud
  • Prod: everyonecook.cloud → Hosted Zone: everyonecook.cloud

2. Resource Naming Convention

All resources follow a consistent naming pattern:

// Resource name format: everyonecook-{env}-{resource}
protected resourceName(name: string): string {
  return `everyonecook-${this.config.environment}-${name}`;
}

// Export name format: EveryoneCook-{Env}-{Export}
protected exportName(name: string): string {
  return `EveryoneCook-${this.config.environment}-${name}`;
}

Example:

  • Stack name: EveryoneCook-dev-DNS
  • Export: EveryoneCook-dev-HostedZoneId

3. Resource Tags

Every resource is tagged for cost tracking and management:

{
  Stack: 'EveryoneCook-dev-DNS',
  Environment: 'dev',
  StackType: 'DNS',
  Layer: 'Foundation',
  CostCenter: 'DNS-dev',
  Component: 'DNS',
  ManagedBy: 'CDK',
  Project: 'EveryoneCook'
}

Stack Outputs

After deployment, the stack exports the following values:

Output NameValueUsage
HostedZoneIdZ0123456789ABCDEFGHIJUsed by Certificate Stack for DNS validation
HostedZoneNameeveryonecook.cloudUsed by other stacks to create DNS records
NameServersns-1.awsdns-01.com, ns-2.awsdns-02.org, ...Configure at Hostinger for DNS delegation

Deployment Steps

Step 1: Review Configuration

Navigate to the infrastructure directory:

cd D:\Project_AWS\everyonecook\infrastructure

Verify the environment configuration in config/environment.ts:

dev: {
  environment: 'dev',
  account: 'YOUR_AWS_ACCOUNT_ID',
  region: 'ap-southeast-1',
  domains: {
    frontend: 'dev.everyonecook.cloud',
    api: 'api-dev.everyonecook.cloud',
    cdn: 'cdn-dev.everyonecook.cloud',
  },
  // ... other configs
}

Step 2: Deploy DNS Stack

Deploy the DNS stack to AWS:

# Deploy DNS Stack only
npx cdk deploy EveryoneCook-dev-DNS --context environment=dev

Expected output:

✨  Synthesis time: 5.23s

EveryoneCook-dev-DNS: deploying...
EveryoneCook-dev-DNS: creating CloudFormation changeset...

 ✅  EveryoneCook-dev-DNS

✨  Deployment time: 45.67s

Outputs:
EveryoneCook-dev-DNS.HostedZoneId = Z0123456789ABCDEFGHIJ
EveryoneCook-dev-DNS.HostedZoneName = everyonecook.cloud
EveryoneCook-dev-DNS.NameServers = ns-123.awsdns-45.com, ns-678.awsdns-90.net,
                                    ns-1234.awsdns-56.org, ns-5678.awsdns-01.co.uk

Stack ARN:
arn:aws:cloudformation:ap-southeast-1:123456789012:stack/EveryoneCook-dev-DNS/...

Step 3: Verify in AWS Console

  1. Navigate to Route 53 in the AWS Console
  2. Go to Hosted zones
  3. Verify the hosted zone everyonecook.cloud is created

Expected view:

  • Domain name: everyonecook.cloud
  • Type: Public hosted zone
  • Records: 2 (NS and SOA records - automatically created)

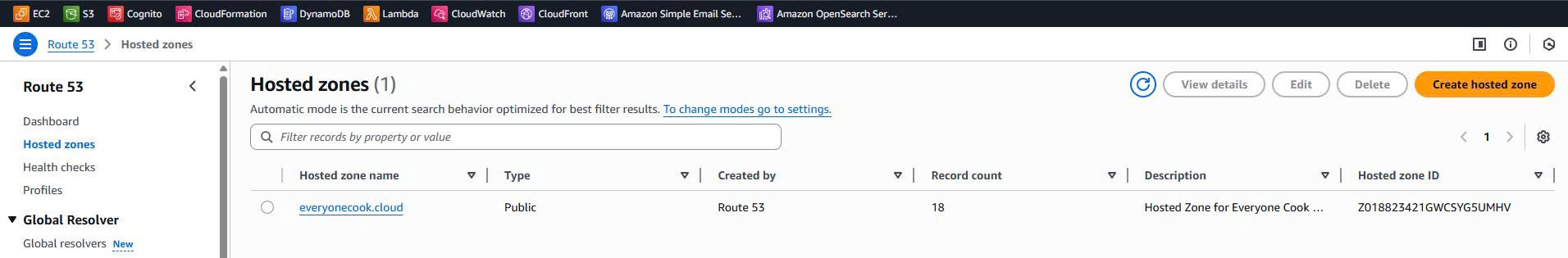

Route 53 Hosted Zone Route 53 Hosted Zone showing domain details, NS records (4 nameservers), and SOA record

Step 4: Copy Nameservers

From the CloudFormation Outputs or Route 53 console, copy all 4 nameserver records:

ns-123.awsdns-45.com
ns-678.awsdns-90.net
ns-1234.awsdns-56.org
ns-5678.awsdns-01.co.uk

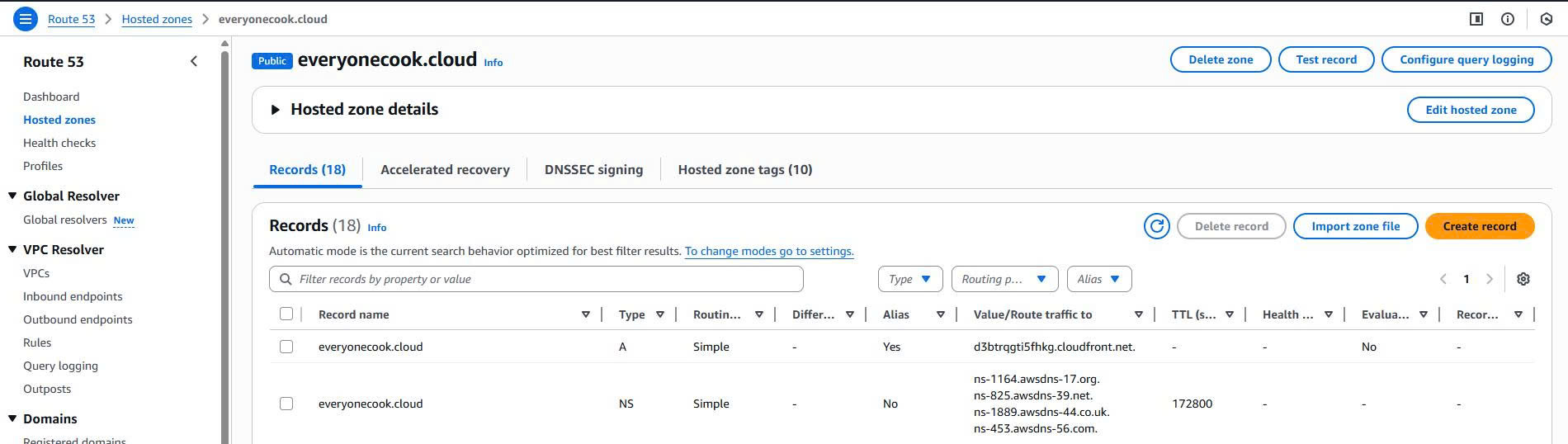

Route 53 Nameservers Location of nameserver records in Route 53 console

Hostinger Configuration

Critical Post-Deployment Step

⚠️ IMPORTANT: After deploying the DNS Stack, you MUST update nameservers at Hostinger to delegate DNS management to Route 53.

Update Nameservers at Hostinger

  1. Login to Hostinger hPanel

  2. Access Domain Management

    • Go to Domains section
    • Select everyonecook.cloud domain

  3. Change Nameservers

    • Click on DNS/Nameservers
    • Select Change nameservers
    • Choose Custom nameservers

  4. Enter Route 53 Nameservers

    • Nameserver 1: ns-123.awsdns-45.com
    • Nameserver 2: ns-678.awsdns-90.net
    • Nameserver 3: ns-1234.awsdns-56.org
    • Nameserver 4: ns-5678.awsdns-01.co.uk

  5. Save Configuration

    • Click Change nameservers button
    • Wait for confirmation

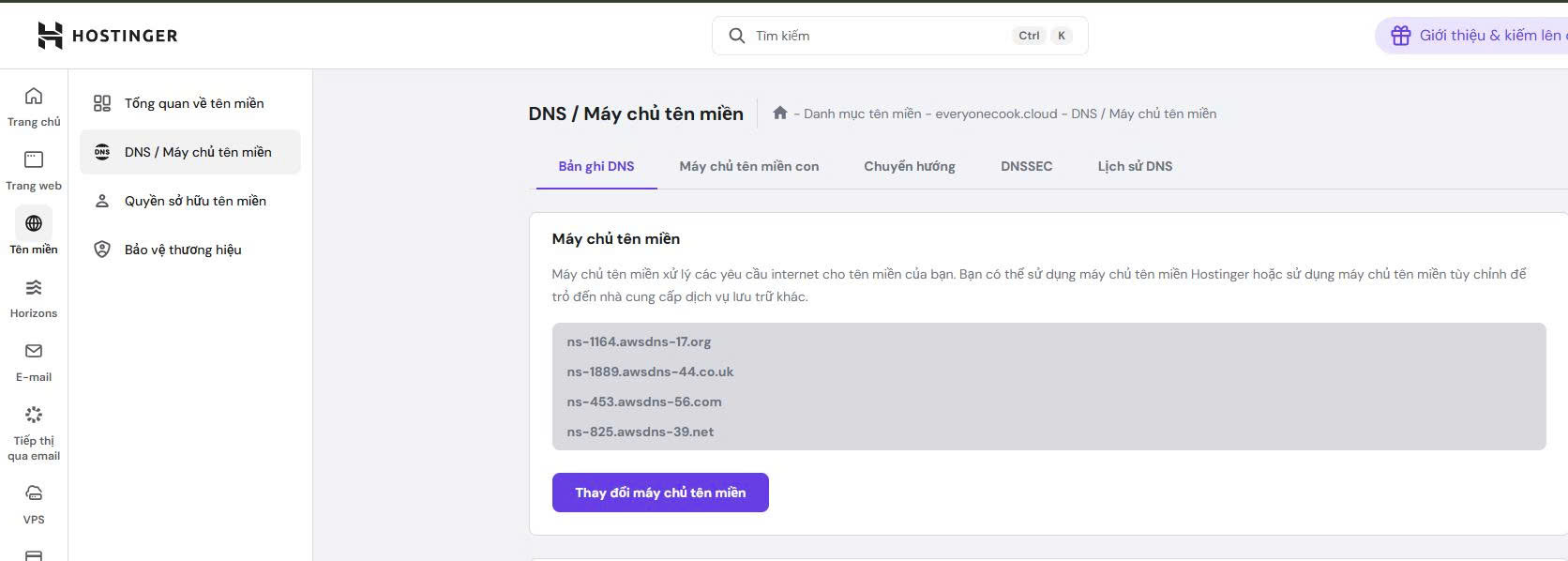

Hostinger Nameserver Configuration Hostinger hPanel showing custom nameservers configuration with Route 53 NS records

Propagation Time

  • Initial propagation: 15-30 minutes
  • Full global propagation: Up to 48 hours (typically within 2-4 hours)

Verify DNS Delegation

After updating nameservers, verify the delegation:

# Check nameservers for the domain
nslookup -type=NS everyonecook.cloud

# Or using dig (if available)
dig NS everyonecook.cloud

Expected output:

everyonecook.cloud      nameserver = ns-123.awsdns-45.com
everyonecook.cloud      nameserver = ns-678.awsdns-90.net
everyonecook.cloud      nameserver = ns-1234.awsdns-56.org
everyonecook.cloud      nameserver = ns-5678.awsdns-01.co.uk

Cost Breakdown

Monthly Costs

ResourceCostNotes
Route 53 Hosted Zone$0.50/monthFixed cost per hosted zone
DNS Queries$0.40 per million queriesFirst 1 billion queries/month
Total (Estimated)~$0.50-1.00/monthVery low traffic in dev environment

Cost Optimization Notes

  • ✅ Single hosted zone for all environments (dev, staging, prod)
  • ✅ Use subdomain prefixes to distinguish environments
  • ✅ No additional cost for NS, SOA, or other DNS records
  • ✅ Pay-per-query pricing is very cost-effective for low-medium traffic

Cross-Stack Dependencies

Exports Used By Other Stacks

The DNS Stack exports values that are imported by:

  1. Certificate Stack (Phase 1.5)

    • Imports: HostedZoneId
    • Purpose: Create DNS validation records for ACM certificates

  2. Core Stack (Phase 2)

    • Imports: HostedZoneId, HostedZoneName
    • Purpose: Create CloudFront A/AAAA alias records

  3. Backend Stack (Phase 4)

    • Imports: HostedZoneId
    • Purpose: Create API Gateway custom domain DNS records

Dependency Flow

DNS Stack (Route 53)
    │
    ├─► Certificate Stack (ACM certificates)
    │
    ├─► Core Stack (CloudFront DNS records)
    │
    └─► Backend Stack (API Gateway DNS records)

Validation Checklist

Before proceeding to Certificate Stack deployment:

  • DNS Stack successfully deployed to AWS
  • Route 53 Hosted Zone visible in AWS Console
  • 4 nameserver records obtained from stack outputs
  • Nameservers updated at Hostinger hPanel
  • DNS delegation verified with nslookup or dig
  • Stack exports visible in CloudFormation console
  • Tags applied correctly to all resources

Next Steps

After successfully deploying and configuring the DNS Stack:

➡️ 5.4.2 Certificate Stack - Create ACM certificates with DNS validation

The Certificate Stack will:

  • Create ACM certificate for CloudFront (cdn.everyonecook.cloud)
  • Create wildcard ACM certificate for API Gateway (*.everyonecook.cloud)
  • Automatically create DNS validation records in Route 53
  • Must be deployed to us-east-1 region (CloudFront requirement)

References

  • Source Code: infrastructure/lib/stacks/dns-stack.ts
  • Base Stack: infrastructure/lib/base-stack.ts
  • Environment Config: infrastructure/config/environment.ts
  • AWS Documentation: Route 53 Hosted Zones
  • Hostinger Guide: How to Change Nameservers
