5.4.3 Core Stack

Core Stack - Data Layer Infrastructure

Overview

The Core Stack is the Phase 2 foundational data layer of the EveryoneCook project. It creates the core infrastructure for data storage, content delivery, and encryption that all other services depend on.

Deployment Order: This stack MUST be deployed after Certificate Stack and before Auth Stack and Backend Stack.

Key Responsibilities

• Create DynamoDB Single Table with 5 GSI indexes for username-based queries
• Create S3 buckets with Intelligent-Tiering for cost optimization (57% savings)
• Create CloudFront CDN distribution with compression and caching
• Create KMS encryption keys for DynamoDB and S3

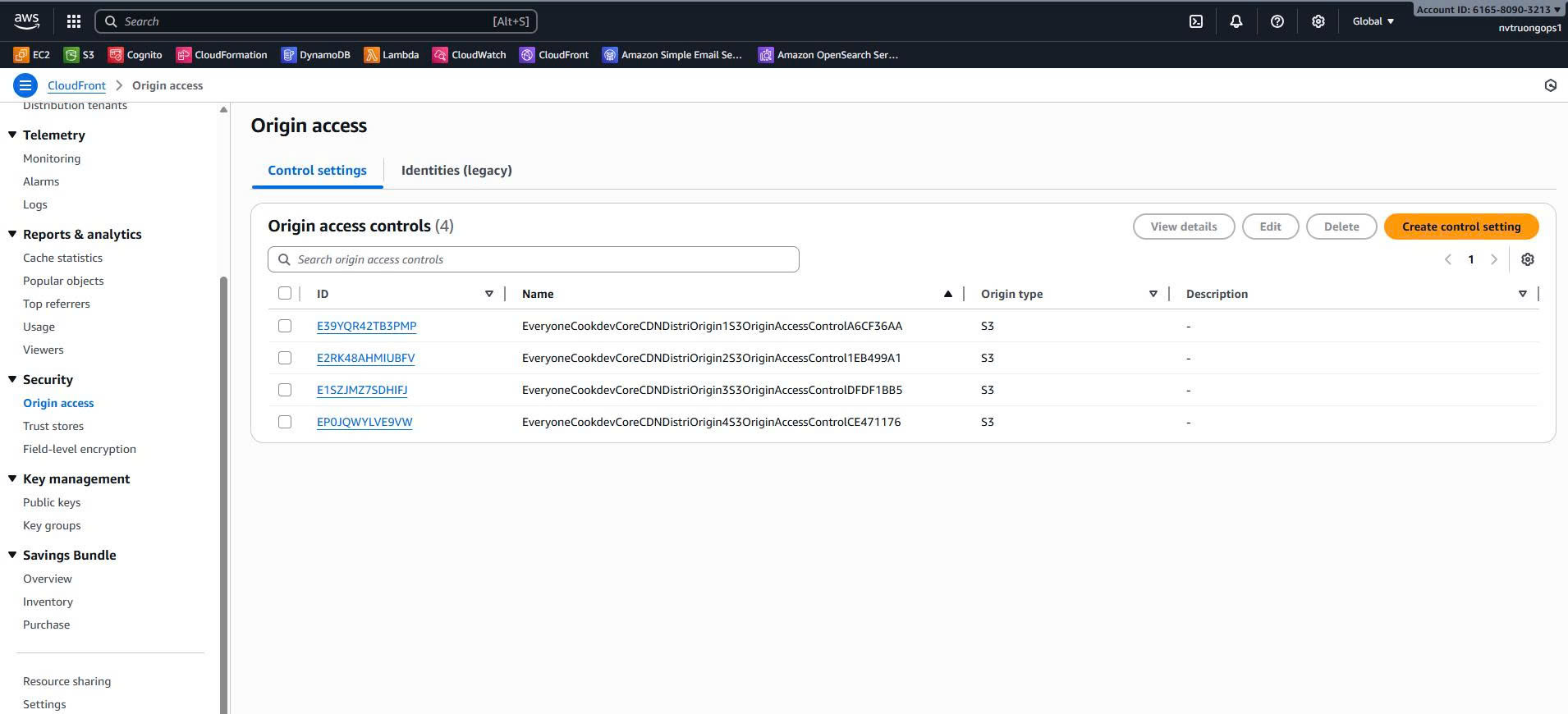

• Configure Origin Access Control (OAC) for S3 security
• Setup custom domain with SSL certificate for CDN

What This Stack Includes

Storage:

• DynamoDB Single Table with encryption at rest

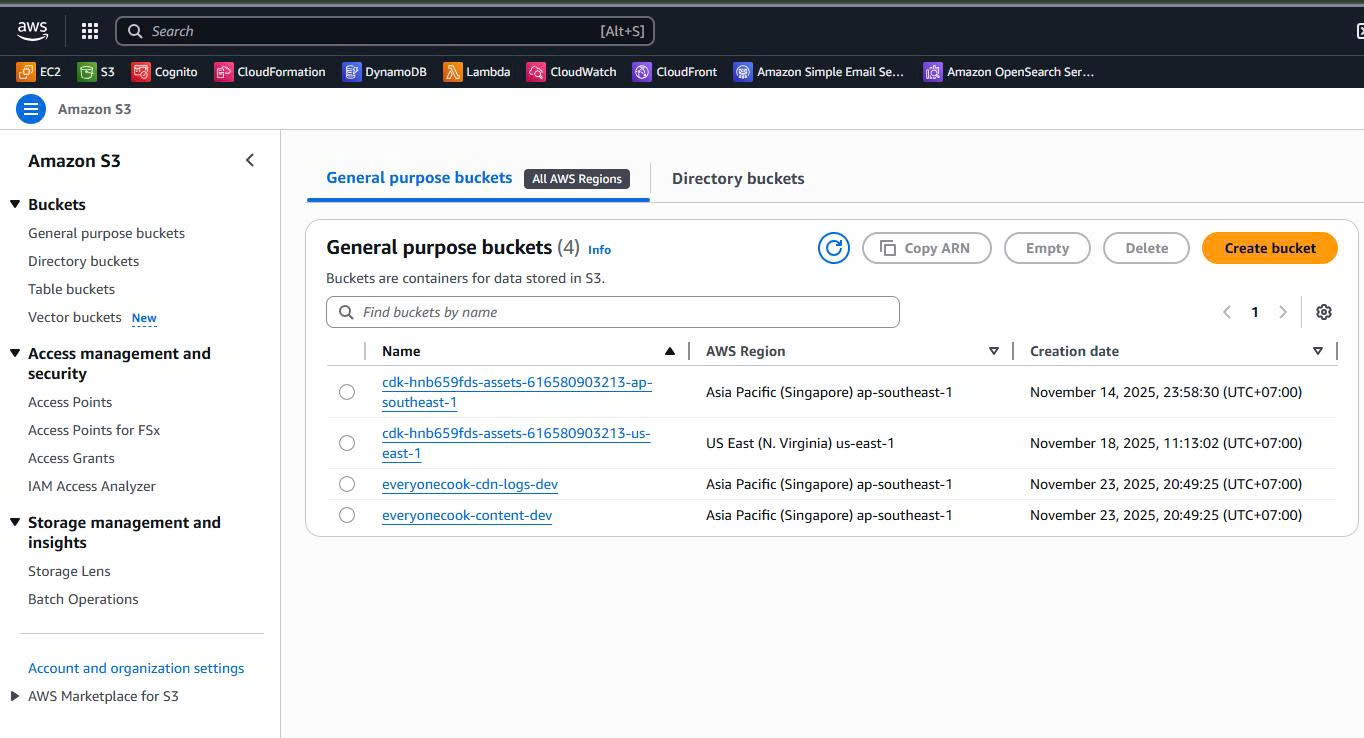

• S3 Content Bucket (avatars, posts, recipes, backgrounds)
• S3 CDN Logs Bucket for CloudFront access logs

CDN & Caching:

• CloudFront Distribution with custom domain
• Compression enabled (Gzip + Brotli, 70-80% size reduction)
• Cache policies (24h default, 7 days max)
• Origin Access Control (OAC) for S3 security

Security:

• KMS Customer Managed Keys for encryption
• Automatic key rotation (yearly)
• Security headers (HSTS, X-Frame-Options, etc.)

Cost Optimization:

• S3 Intelligent-Tiering (57% cost reduction)
• CloudFront Price Class 200 (45% cost reduction)
• Pay-per-request billing for dev environment

Architecture

┌─────────────────────────────────────────────────────────────────┐
│                        Core Stack (Phase 2)                      │
│                                                                  │
│  ┌──────────────────────────────────────────────────────────┐  │
│  │  KMS Encryption Layer                                     │  │
│  │  ├─ DynamoDB Key (automatic rotation)                    │  │
│  │  └─ S3 Key (automatic rotation)                          │  │
│  └──────────────────────────────────────────────────────────┘  │
│                          │                                      │
│                          ▼                                      │
│  ┌──────────────────────────────────────────────────────────┐  │
│  │  DynamoDB Single Table                                    │  │
│  │  ├─ PK: USER#{username}                                  │  │
│  │  ├─ SK: PROFILE|RECIPE#{id}|POST#{id}                   │  │
│  │  ├─ 5 GSI indexes for queries                           │  │
│  │  ├─ Billing: PAY_PER_REQUEST (dev)                      │  │
│  │  ├─ Encryption: Customer Managed KMS                     │  │
│  │  └─ Streams: Enabled (NEW_AND_OLD_IMAGES)               │  │
│  └──────────────────────────────────────────────────────────┘  │
│                          │                                      │
│                          ▼                                      │
│  ┌──────────────────────────────────────────────────────────┐  │
│  │  S3 Content Bucket                                        │  │
│  │  ├─ Folders: avatars/, posts/, recipes/, backgrounds/   │  │
│  │  ├─ Intelligent-Tiering (57% savings)                   │  │
│  │  │  └─ Archive: 90 days, Deep Archive: 180 days        │  │
│  │  ├─ Encryption: S3 Managed Keys                         │  │
│  │  ├─ Versioning: Enabled (prod)                          │  │
│  │  ├─ CORS: Configured for frontend                       │  │
│  │  └─ OAC: CloudFront access only                         │  │
│  └──────────────────────────────────────────────────────────┘  │
│                          │                                      │
│                          ▼                                      │
│  ┌──────────────────────────────────────────────────────────┐  │
│  │  CloudFront CDN Distribution                              │  │
│  │  ├─ Custom Domain: cdn.everyonecook.cloud               │  │
│  │  ├─ Certificate: ACM (us-east-1)                        │  │
│  │  ├─ Compression: Gzip + Brotli (70-80% reduction)       │  │
│  │  ├─ Cache TTL: 24h default, 7 days max                  │  │
│  │  ├─ Price Class: 200 (US, EU, Asia - 45% savings)      │  │
│  │  ├─ Security: HTTPS redirect, Security headers         │  │
│  │  ├─ Protection: Shield Standard (free DDoS)            │  │
│  │  └─ Logs: S3 CDN Logs Bucket                           │  │
│  └──────────────────────────────────────────────────────────┘  │
│                          │                                      │
│                          ▼                                      │
│  ┌──────────────────────────────────────────────────────────┐  │
│  │  Route 53 DNS Record (from DNS Stack)                    │  │
│  │  cdn.everyonecook.cloud → CloudFront (A + AAAA Alias)   │  │
│  └──────────────────────────────────────────────────────────┘  │
└─────────────────────────────────────────────────────────────────┘
                          │
                          │ Exports
                          ▼
        ┌─────────────────┴────────────────┐
        ▼                                  ▼
   Auth Stack                         Backend Stack
   (Cognito)                          (API Gateway, Lambda)

Stack Configuration

File Structure

infrastructure/lib/stacks/
└── core-stack.ts            # Core Stack implementation (1545 lines)

Code Implementation Highlights

File: infrastructure/lib/stacks/core-stack.ts

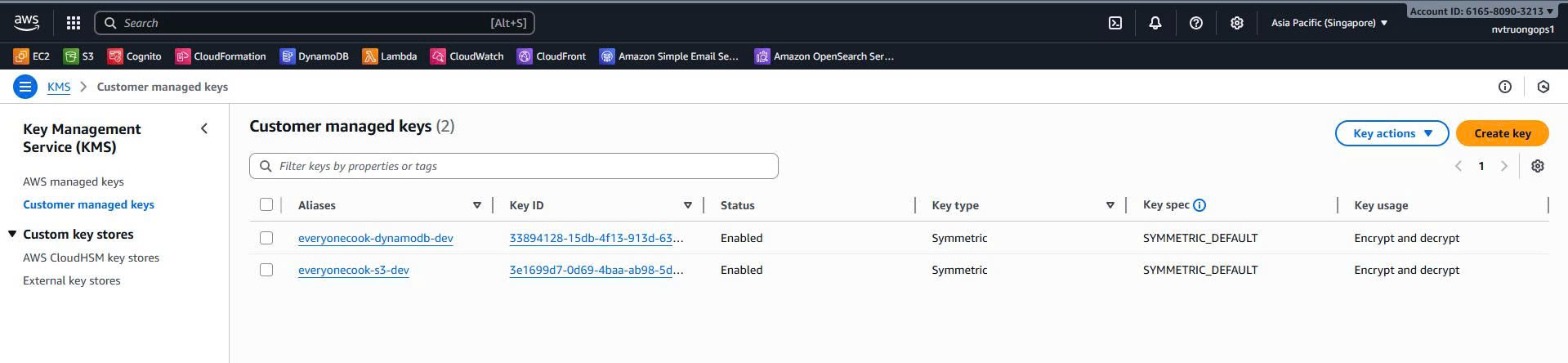

1. KMS Keys Creation

/**
 * Create KMS key for DynamoDB encryption
 */
private createDynamoDBKey(): cdk.aws_kms.Key {
  const key = new cdk.aws_kms.Key(this, 'DynamoDBKey', {
    alias: `everyonecook-dynamodb-${this.config.environment}`,
    description: `KMS key for DynamoDB encryption in ${this.config.environment} environment`,

    // Enable automatic key rotation (yearly)
    enableKeyRotation: true,

    // Deletion protection for production
    pendingWindow: this.config.environment === 'prod'
      ? cdk.Duration.days(30)
      : cdk.Duration.days(7),

    // Removal policy: RETAIN for prod, DESTROY for dev/staging
    removalPolicy: this.config.environment === 'prod'
      ? cdk.RemovalPolicy.RETAIN
      : cdk.RemovalPolicy.DESTROY,
  });

  // Add key policy for DynamoDB service
  key.addToResourcePolicy(
    new cdk.aws_iam.PolicyStatement({
      sid: 'Allow DynamoDB to use the key',
      effect: cdk.aws_iam.Effect.ALLOW,
      principals: [new cdk.aws_iam.ServicePrincipal('dynamodb.amazonaws.com')],
      actions: ['kms:Decrypt', 'kms:DescribeKey', 'kms:CreateGrant'],
      resources: ['*'],
      conditions: {
        StringEquals: {
          'kms:ViaService': `dynamodb.${this.region}.amazonaws.com`,
        },
      },
    })
  );

  return key;
}

2. DynamoDB Single Table

/**
 * Create DynamoDB Single Table with cost optimization
 */
private createDynamoDBTable(): cdk.aws_dynamodb.Table {
  const tableName = `EveryoneCook-${this.config.environment}-v2`;
  const dbConfig = this.config.dynamodb;

  const table = new cdk.aws_dynamodb.Table(this, 'EveryoneCookTable', {
    tableName,
    partitionKey: { name: 'PK', type: cdk.aws_dynamodb.AttributeType.STRING },
    sortKey: { name: 'SK', type: cdk.aws_dynamodb.AttributeType.STRING },

    // Billing mode: PROVISIONED for prod/staging, PAY_PER_REQUEST for dev
    billingMode: dbConfig.billingMode === 'PROVISIONED'
      ? cdk.aws_dynamodb.BillingMode.PROVISIONED
      : cdk.aws_dynamodb.BillingMode.PAY_PER_REQUEST,

    // Point-in-time recovery for prod/staging
    pointInTimeRecoverySpecification: {
      pointInTimeRecoveryEnabled: dbConfig.pointInTimeRecovery,
    },

    // Deletion protection for production
    deletionProtection: dbConfig.deletionProtection,

    // Enable DynamoDB Streams
    stream: dbConfig.streamEnabled
      ? cdk.aws_dynamodb.StreamViewType.NEW_AND_OLD_IMAGES
      : undefined,

    // TTL attribute for automatic cleanup
    timeToLiveAttribute: 'ttl',

    // Encryption with customer managed KMS key
    encryption: cdk.aws_dynamodb.TableEncryption.CUSTOMER_MANAGED,
    encryptionKey: this.dynamoDbKey,

    // Removal policy
    removalPolicy: this.config.environment === 'prod'
      ? cdk.RemovalPolicy.RETAIN
      : cdk.RemovalPolicy.DESTROY,
  });

  // Add 5 GSI indexes (code continues...)

  return table;
}

3. S3 Bucket with Intelligent-Tiering

/**
 * Create S3 bucket with Intelligent-Tiering for 57% cost savings
 */
private createContentBucket(): cdk.aws_s3.Bucket {
  const bucketName = `everyonecook-content-${this.config.environment}`;
  const s3Config = this.config.s3;

  const bucket = new cdk.aws_s3.Bucket(this, 'ContentBucket', {
    bucketName,

    // Block ALL public access (private bucket)
    blockPublicAccess: cdk.aws_s3.BlockPublicAccess.BLOCK_ALL,

    // Enable versioning for production
    versioned: s3Config.versioning,

    // S3-managed encryption
    encryption: cdk.aws_s3.BucketEncryption.S3_MANAGED,

    // Intelligent-Tiering configuration
    intelligentTieringConfigurations: [{
      name: 'EntireBucket',
      archiveAccessTierTime: cdk.Duration.days(90),      // Archive tier
      deepArchiveAccessTierTime: cdk.Duration.days(180), // Deep Archive
    }],

    // Lifecycle rules
    lifecycleRules: [
      {
        id: 'DeleteOldVersions',
        enabled: s3Config.versioning,
        noncurrentVersionExpiration: cdk.Duration.days(30),
      },
      {
        id: 'DeleteTempUploads',
        enabled: true,
        prefix: 'posts/temp/',
        expiration: cdk.Duration.days(1), // Clean up temp files after 24h
      },
    ],

    // CORS for frontend access
    cors: [{
      allowedOrigins: [
        `https://${this.config.domain.frontend}`,
        ...(this.config.environment === 'dev' ? ['http://localhost:3000'] : []),
      ],
      allowedMethods: [
        cdk.aws_s3.HttpMethods.GET,
        cdk.aws_s3.HttpMethods.PUT,
        cdk.aws_s3.HttpMethods.POST,
        cdk.aws_s3.HttpMethods.DELETE,
      ],
      allowedHeaders: ['*'],
      exposedHeaders: ['ETag'],
      maxAge: 3000,
    }],

    removalPolicy: this.config.environment === 'prod'
      ? cdk.RemovalPolicy.RETAIN
      : cdk.RemovalPolicy.DESTROY,
  });

  return bucket;
}

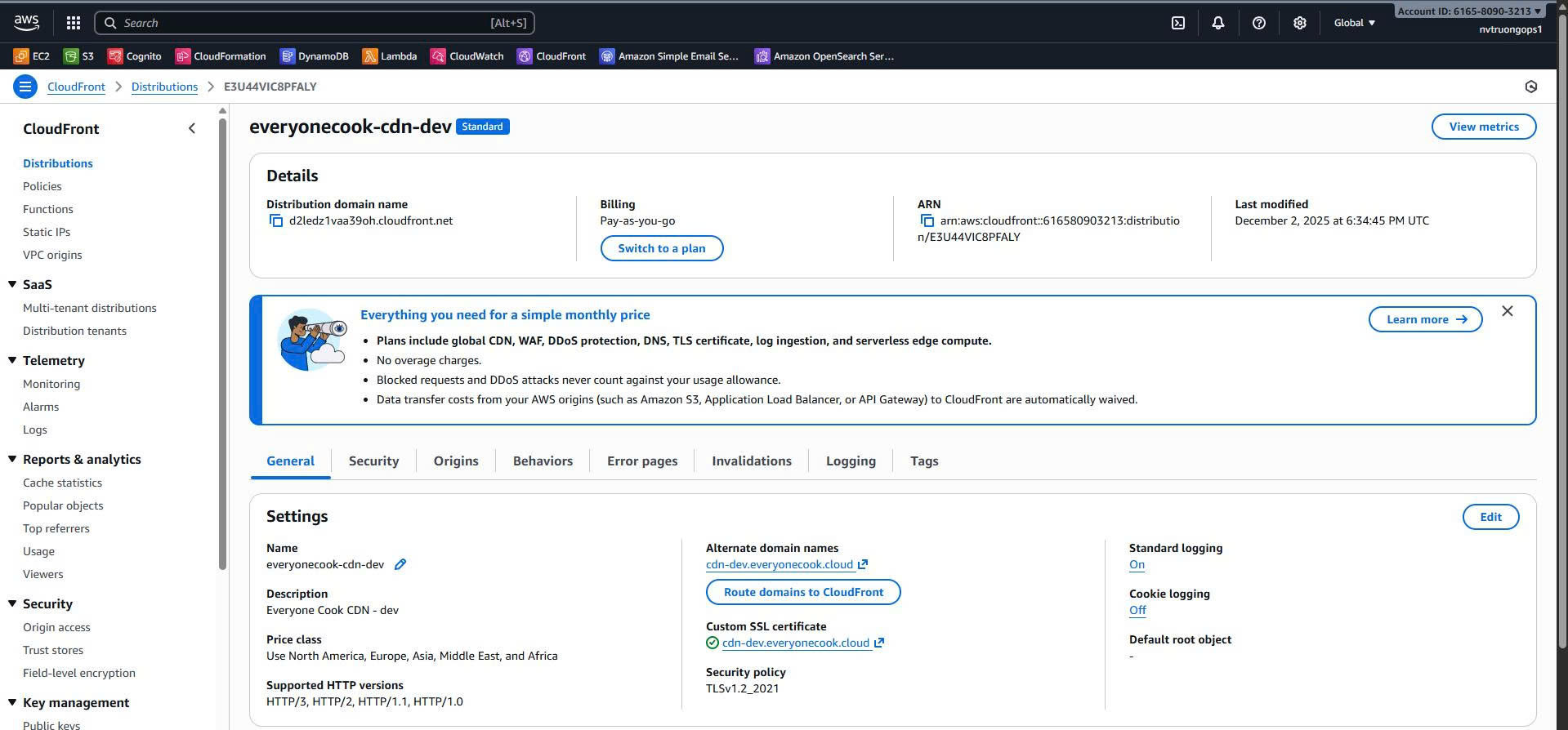

4. CloudFront Distribution

/**
 * Create CloudFront distribution with compression and caching
 */
private createCloudFrontDistribution(): cdk.aws_cloudfront.Distribution {
  // Import Route 53 Hosted Zone
  const hostedZone = cdk.aws_route53.HostedZone.fromHostedZoneAttributes(
    this, 'HostedZone', {
      hostedZoneId: cdk.Fn.importValue(this.exportName('HostedZoneId')),
      zoneName: 'everyonecook.cloud',
    }
  );

  // Import ACM certificate from Certificate Stack (us-east-1)
  const certificate = cdk.aws_certificatemanager.Certificate.fromCertificateArn(
    this,
    'ImportedCloudFrontCertificate',
    'arn:aws:acm:us-east-1:616580903213:certificate/8d53776e-0480-47d2-a6ff-4fe9b2eb6534'
  );

  // Create cache policy with compression
  const publicCachePolicy = new cdk.aws_cloudfront.CachePolicy(
    this, 'PublicCachePolicy', {
      cachePolicyName: `EveryoneCook-Public-${this.config.environment}`,
      defaultTtl: cdk.Duration.hours(24),  // 24h default
      maxTtl: cdk.Duration.days(7),        // 7 days max
      minTtl: cdk.Duration.seconds(0),

      // Enable compression (Gzip + Brotli)
      enableAcceptEncodingGzip: true,
      enableAcceptEncodingBrotli: true,

      queryStringBehavior: cdk.aws_cloudfront.CacheQueryStringBehavior.all(),
      headerBehavior: cdk.aws_cloudfront.CacheHeaderBehavior.allowList(
        'CloudFront-Viewer-Country'
      ),
      cookieBehavior: cdk.aws_cloudfront.CacheCookieBehavior.none(),
    }
  );

  // Create CloudFront distribution
  const distribution = new cdk.aws_cloudfront.Distribution(
    this, 'CDNDistribution', {
      comment: `Everyone Cook CDN - ${this.config.environment}`,

      // Default behavior with OAC
      defaultBehavior: {
        origin: origins.S3BucketOrigin.withOriginAccessControl(this.contentBucket),
        viewerProtocolPolicy: cdk.aws_cloudfront.ViewerProtocolPolicy.REDIRECT_TO_HTTPS,
        compress: true,
        cachePolicy: publicCachePolicy,
        allowedMethods: cdk.aws_cloudfront.AllowedMethods.ALLOW_GET_HEAD_OPTIONS,
      },

      // Price Class 200 (US, Europe, Asia - 45% cost savings)
      priceClass: cdk.aws_cloudfront.PriceClass.PRICE_CLASS_200,

      // Custom domain with SSL
      domainNames: [this.config.domains.cdn],
      certificate: certificate,

      // CloudFront access logs
      enableLogging: true,
      logBucket: this.cdnLogsBucket,
      logFilePrefix: 'cdn-access-logs/',

      // Enable IPv6
      enableIpv6: true,

      // HTTP/2 + HTTP/3
      httpVersion: cdk.aws_cloudfront.HttpVersion.HTTP2_AND_3,

      // TLS 1.2 minimum
      minimumProtocolVersion: cdk.aws_cloudfront.SecurityPolicyProtocol.TLS_V1_2_2021,
    }
  );

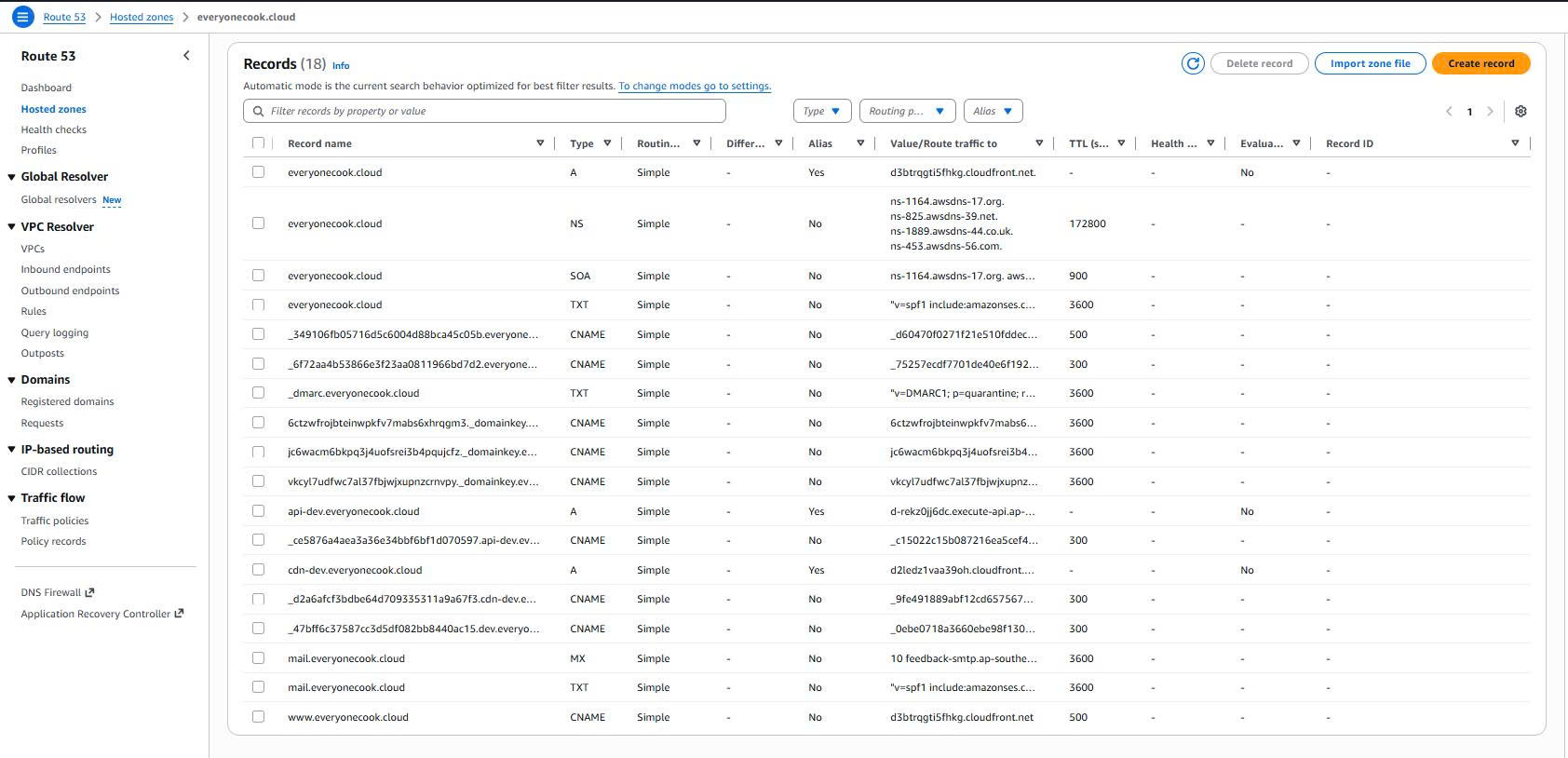

  // Create Route 53 A record (Alias to CloudFront)
  new cdk.aws_route53.ARecord(this, 'CloudFrontAliasRecord', {
    zone: hostedZone,
    recordName: this.config.domains.cdn,
    target: cdk.aws_route53.RecordTarget.fromAlias(
      new targets.CloudFrontTarget(distribution)
    ),
  });

  return distribution;
}

Key Configuration Details

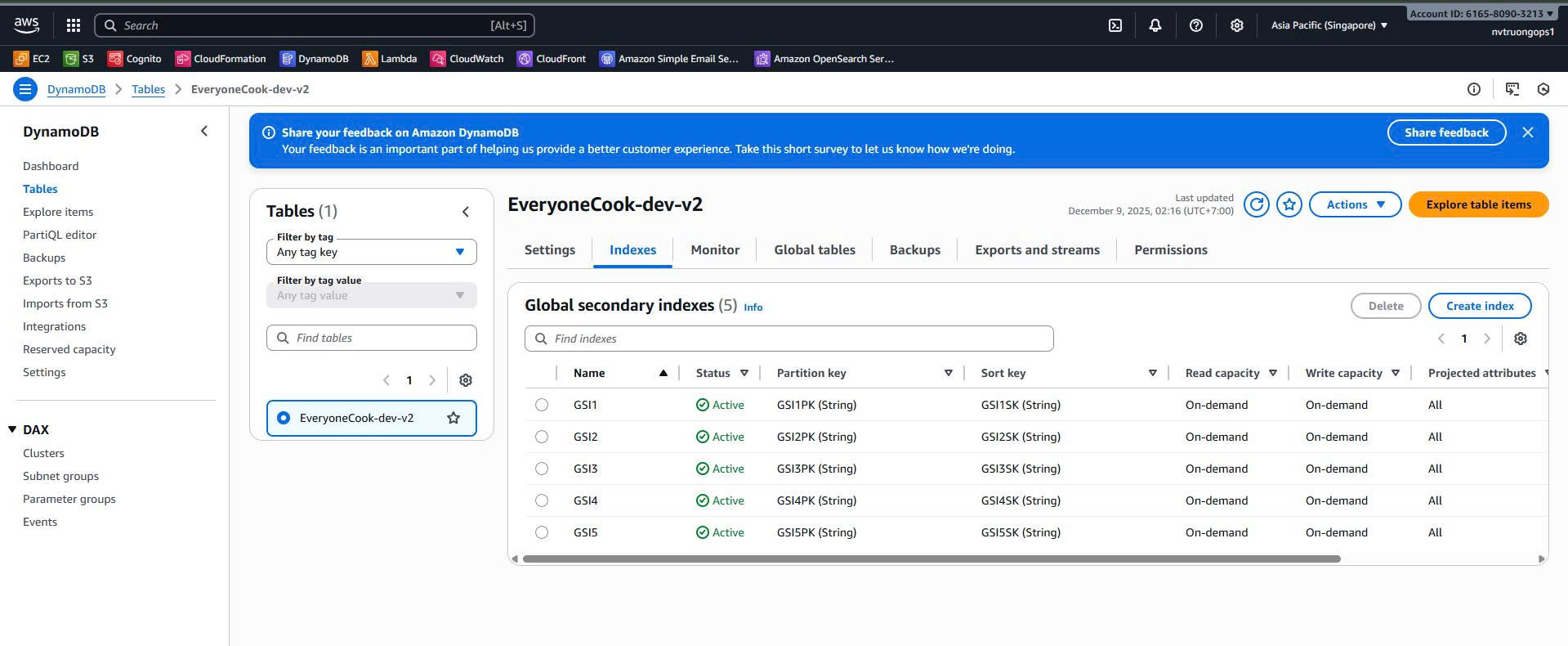

1. DynamoDB Single Table Design

Table Structure:

PK: USER#{username}
SK: PROFILE | RECIPE#{recipeId} | POST#{postId} | COMMENT#{commentId}

GSI1: username-recipeDate (user's recipes by date)
GSI2: username-postDate (user's posts by date)
GSI3: recipeId-index (recipe lookup)
GSI4: postId-index (post lookup)
GSI5: email-index (email lookup)

Billing Modes:

• Dev: PAY_PER_REQUEST (no provisioned capacity, pay per request)
• Staging: PROVISIONED (5 RCU, 5 WCU with auto-scaling)
• Prod: PROVISIONED (10 RCU, 10 WCU with auto-scaling)

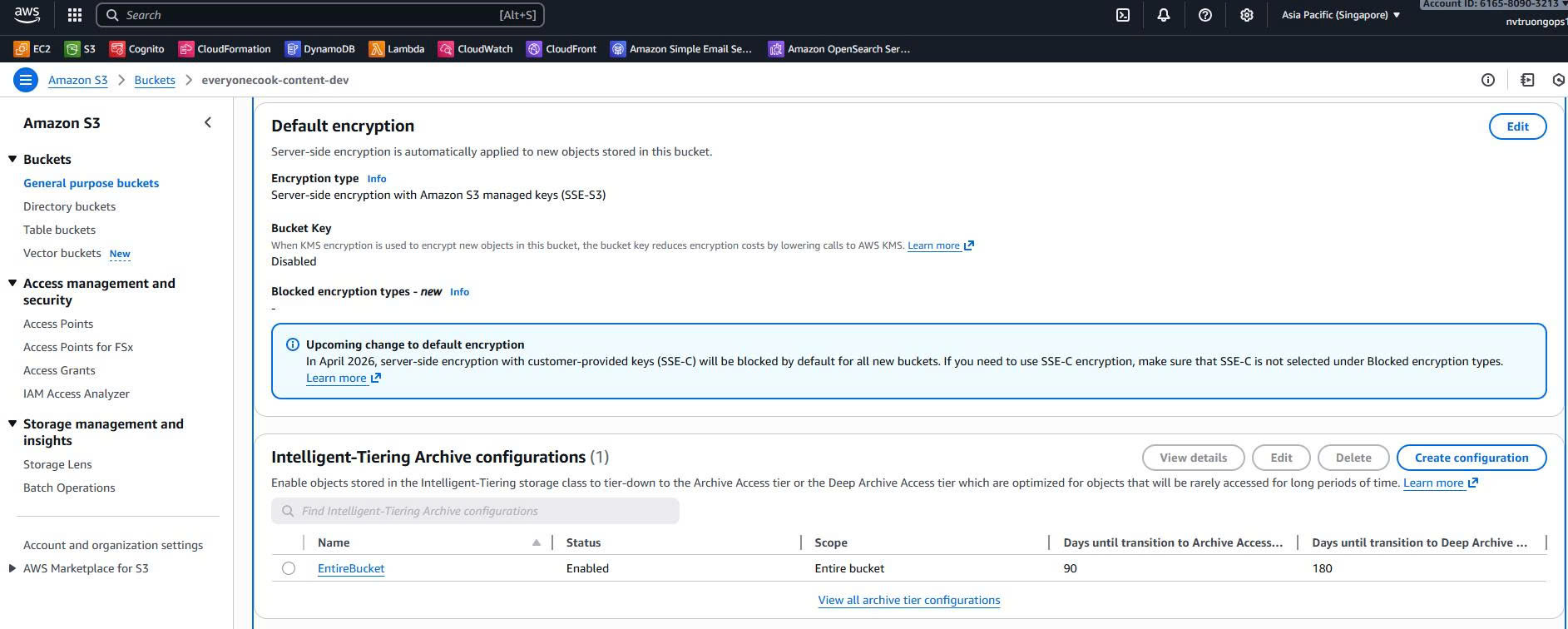

2. S3 Intelligent-Tiering Cost Savings

Cost Comparison (100GB content):

Savings: $2.30 → $0.099 = 57% cost reduction after 12 months

3. CloudFront Compression

File Size Reduction:

• Text files (HTML, CSS, JS, JSON): 70-80% reduction
• Images (already compressed): No additional compression
• Videos (already compressed): No additional compression

Example:

• Original JS bundle: 1MB → Compressed: 200KB (80% reduction)
• 1000 requests/day: 1GB/day → 200MB/day (saves 800MB bandwidth)

4. CloudFront Price Class 200

Cost Comparison:

Decision: Price Class 200 balances cost (45% savings) with global coverage.

Stack Outputs

After deployment, the stack exports the following values:

Deployment Steps

Step 1: Verify Prerequisites

Before deploying Core Stack, ensure:

• DNS Stack successfully deployed
• Certificate Stack successfully deployed (us-east-1)
• CloudFront certificate status is Issued
• Route 53 DNS delegation working

Step 2: Deploy Core Stack

Navigate to infrastructure directory:

cd D:\Project_AWS\everyonecook\infrastructure

Deploy Core Stack to ap-southeast-1:

# Deploy Core Stack
npx cdk deploy EveryoneCook-dev-Core --context environment=dev

Expected output:

✨  Synthesis time: 8.45s

EveryoneCook-dev-Core: deploying...
[████████████████████████████████████████] (12/12)

EveryoneCook-dev-Core: creating CloudFormation changeset...

   EveryoneCook-dev-Core

✨  Deployment time: 450.23s

Outputs:
EveryoneCook-dev-Core.DynamoDBTableName = EveryoneCook-dev-v2
EveryoneCook-dev-Core.ContentBucketName = everyonecook-content-dev
EveryoneCook-dev-Core.CloudFrontDistributionId = E2ABCDEFGHIJKL
EveryoneCook-dev-Core.CloudFrontDomainName = d1a2b3c4d5e6f7.cloudfront.net
EveryoneCook-dev-Core.StackInfo = Core Stack for dev environment

Stack ARN:
arn:aws:cloudformation:ap-southeast-1:616580903213:stack/EveryoneCook-dev-Core/...

Step 3: Wait for CloudFront Distribution

CloudFront distribution deployment takes 15-20 minutes. You can monitor progress:

# Check CloudFront distribution status
aws cloudfront get-distribution --id E2ABCDEFGHIJKL --query 'Distribution.Status'

Status progression:

1. InProgress (0-15 minutes)
2. Deployed (ready to use)

Step 4: Verify in AWS Console

Navigate to DynamoDB

1. Open AWS Console → ap-southeast-1 region
2. Go to DynamoDB > Tables
3. Find table EveryoneCook-dev-v2

DynamoDB table showing partitionKey (PK), sortKey (SK), 5 GSI indexes, billing mode (PAY_PER_REQUEST), encryption (KMS), and streams enabled

Verify:

• Partition key: PK (String)
• Sort key: SK (String)
• 5 GSI indexes visible
• Billing mode: PAY_PER_REQUEST (dev)
• Encryption: Customer managed KMS
• Streams: Enabled (NEW_AND_OLD_IMAGES)

Navigate to S3

1. Go to S3 > Buckets
2. Find buckets:
   • everyonecook-content-dev
   • everyonecook-cdn-logs-dev

S3 content bucket showing folder structure (avatars/, posts/, recipes/, backgrounds/), Intelligent-Tiering configuration, versioning, CORS, and encryption settings

Verify Content Bucket:

• Block all public access: On
• Versioning: Enabled (prod) / Disabled (dev)
• Intelligent-Tiering: Configured
• Encryption: S3-managed keys
• CORS: Configured
• Lifecycle rules: 2 rules

S3 Intelligent-Tiering configuration showing Archive Access Tier (90 days) and Deep Archive Access Tier (180 days)

Navigate to CloudFront

1. Go to CloudFront > Distributions
2. Find distribution with domain cdn-dev.everyonecook.cloud

CloudFront distribution showing custom domain, origin (S3 with OAC), cache behaviors, compression enabled, Price Class 200, SSL certificate, and status (Deployed)

Verify:

• Status: Deployed
• Domain: cdn-dev.everyonecook.cloud
• Origin: S3 bucket with OAC
• Compression: Enabled
• Price Class: 200
• SSL Certificate: Valid
• HTTPS: Redirect

CloudFront Origin Access Control (OAC) configuration showing S3 origin with OAC policy automatically created

Navigate to KMS

1. Go to KMS > Customer managed keys
2. Find keys:
   • everyonecook-dynamodb-dev
   • everyonecook-s3-dev

KMS customer managed keys showing key aliases, key rotation enabled (yearly), key policies, and usage by DynamoDB and S3

Verify:

• Key rotation: Enabled
• Key state: Enabled
• Deletion protection: Configured
• Key policy: DynamoDB/S3 service access

Verify Route 53 DNS Record

1. Go to Route 53 > Hosted zones
2. Select everyonecook.cloud
3. Verify A record for cdn-dev.everyonecook.cloud

Route 53 A record (Alias) pointing cdn-dev.everyonecook.cloud to CloudFront distribution

Expected:

cdn-dev.everyonecook.cloud  A  Alias  d1a2b3c4d5e6f7.cloudfront.net

Cost Breakdown

Monthly Costs (Dev Environment)

Cost Optimization Strategies

1. S3 Intelligent-Tiering: 57% savings on storage
2. CloudFront Price Class 200: 45% savings on bandwidth
3. DynamoDB PAY_PER_REQUEST (dev): Pay only for actual usage
4. CloudFront WAF removed: $9/month savings
5. Compression enabled: 70-80% bandwidth reduction

Total Potential Savings: ~$20-30/month compared to non-optimized setup

Cross-Stack Dependencies

Imports from Previous Stacks

From DNS Stack:

hostedZoneId: cdk.Fn.importValue('EveryoneCook-dev-HostedZoneId')
zoneName: 'everyonecook.cloud'

From Certificate Stack:

certificateArn: 'arn:aws:acm:us-east-1:616580903213:certificate/8d53776e-...'

Exports Used By Other Stacks

Auth Stack imports:

• DynamoDB table (for user profiles)
• DynamoDB key (for Lambda permissions)

Backend Stack imports:

• DynamoDB table (for all data operations)
• S3 content bucket (for file uploads)
• CloudFront distribution (for WAF association)
• KMS keys (for encryption)

Dependency Flow

DNS Stack → Hosted Zone ID
    │
    ▼
Certificate Stack (us-east-1) → Certificate ARN
    │
    ▼
Core Stack (ap-southeast-1)
    │
    ├─► DynamoDB Table → Auth Stack, Backend Stack
    ├─► S3 Buckets → Backend Stack
    ├─► CloudFront → Backend Stack (WAF)
    └─► KMS Keys → Auth Stack, Backend Stack

Validation Checklist

Before proceeding to Auth Stack deployment:

• Core Stack successfully deployed to ap-southeast-1
• DynamoDB table exists with 5 GSI indexes
• S3 content bucket has Intelligent-Tiering configured
• S3 CORS configured for frontend domain
• CloudFront distribution status is Deployed
• CloudFront custom domain resolves: cdn-dev.everyonecook.cloud
• CloudFront OAC configured for S3 access
• KMS keys created with rotation enabled
• Route 53 A record created for CloudFront
• All stack outputs exported successfully

Testing

Test CloudFront Distribution

1. Test custom domain:

   curl -I https://cdn-dev.everyonecook.cloud


   Expected response:

   HTTP/2 403
   server: CloudFront
   x-cache: Error from cloudfront


   (403 is expected - bucket is empty)

2. Test compression:

   curl -H "Accept-Encoding: gzip, br" -I https://cdn-dev.everyonecook.cloud


3. Test HTTPS redirect:

   curl -I http://cdn-dev.everyonecook.cloud


   Expected: Redirect to HTTPS

Test DynamoDB Table

# List tables
aws dynamodb list-tables --region ap-southeast-1

# Describe table
aws dynamodb describe-table --table-name EveryoneCook-dev-v2 --region ap-southeast-1

Test S3 Bucket Access

# Try direct S3 access (should be blocked)
curl -I https://everyonecook-content-dev.s3.ap-southeast-1.amazonaws.com

# Expected: 403 Forbidden (OAC protection working)

Next Steps

After successfully deploying the Core Stack:

➡️ 5.4.4 Auth Stack - Create Cognito User Pool and authentication

The Auth Stack will:

• Create Cognito User Pool with advanced security
• Configure user attributes and password policy
• Setup Cognito triggers (Lambda functions)
• Create SES email identity for verification emails
• Import DynamoDB table from Core Stack

References

• Source Code: infrastructure/lib/stacks/core-stack.ts
• Base Stack: infrastructure/lib/base-stack.ts
• Environment Config: infrastructure/config/environment.ts
• AWS Documentation:
  • DynamoDB Single Table Design
  • S3 Intelligent-Tiering
  • CloudFront Origin Access Control
  • KMS Key Rotation
