5.4.5 Backend Stack

Backend Stack - Application Layer

Overview

The Backend Stack is the Phase 4 application layer of the EveryoneCook infrastructure. It consolidates the API Gateway, Lambda functions, SQS queues, and WAF security into a unified backend architecture.

Deployment Order: This stack MUST be deployed after Core Stack and Auth Stack.

⚠️ Environment Note: This guide focuses on Development (dev) environment deployment. For staging/production deployments, see Environment Differences section.

Key Responsibilities

• Create API Gateway REST API with custom domain
• Deploy 6 Lambda functions (API Router + 5 business modules)
• Configure 2 active SQS queues for async processing (AI, Image queues with DLQs)
• Deploy 2 worker Lambda functions for event processing (AI Worker, Image Worker)
• Setup WAF Web ACL for API Gateway protection

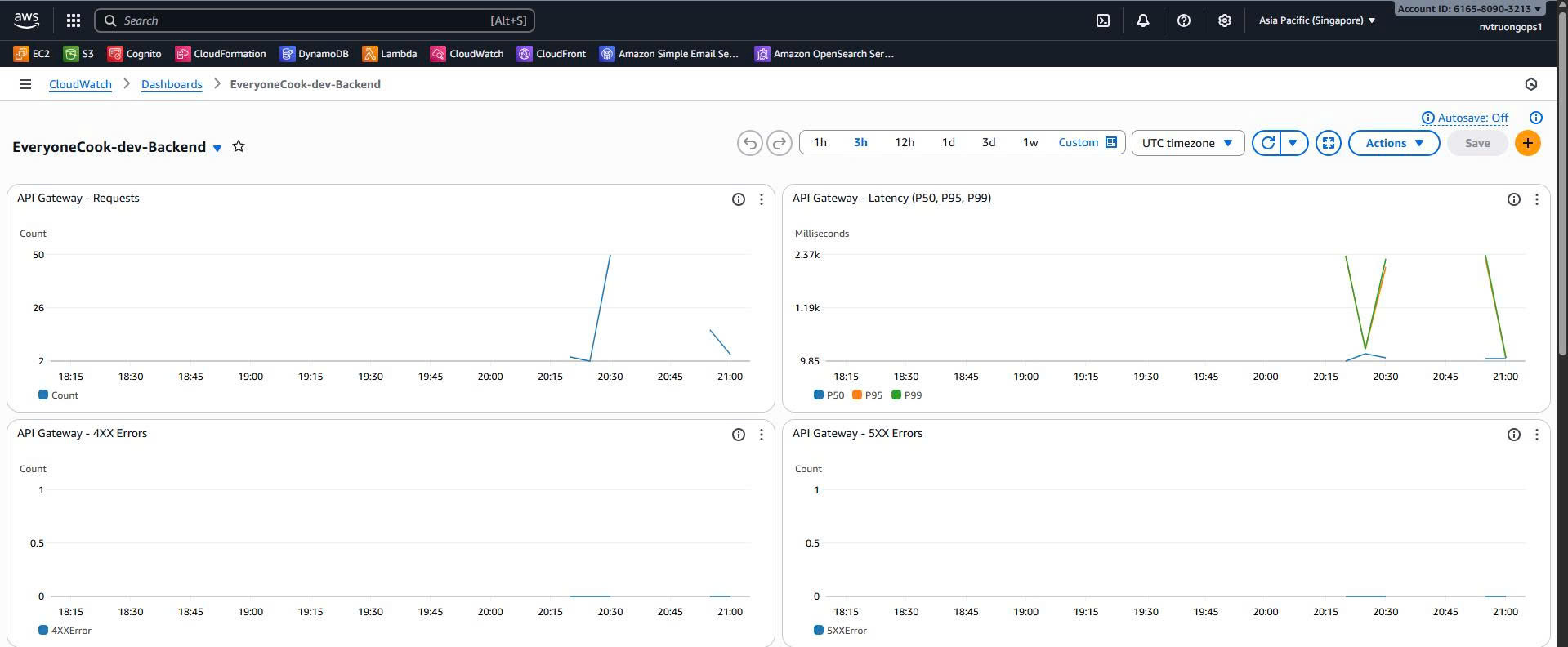

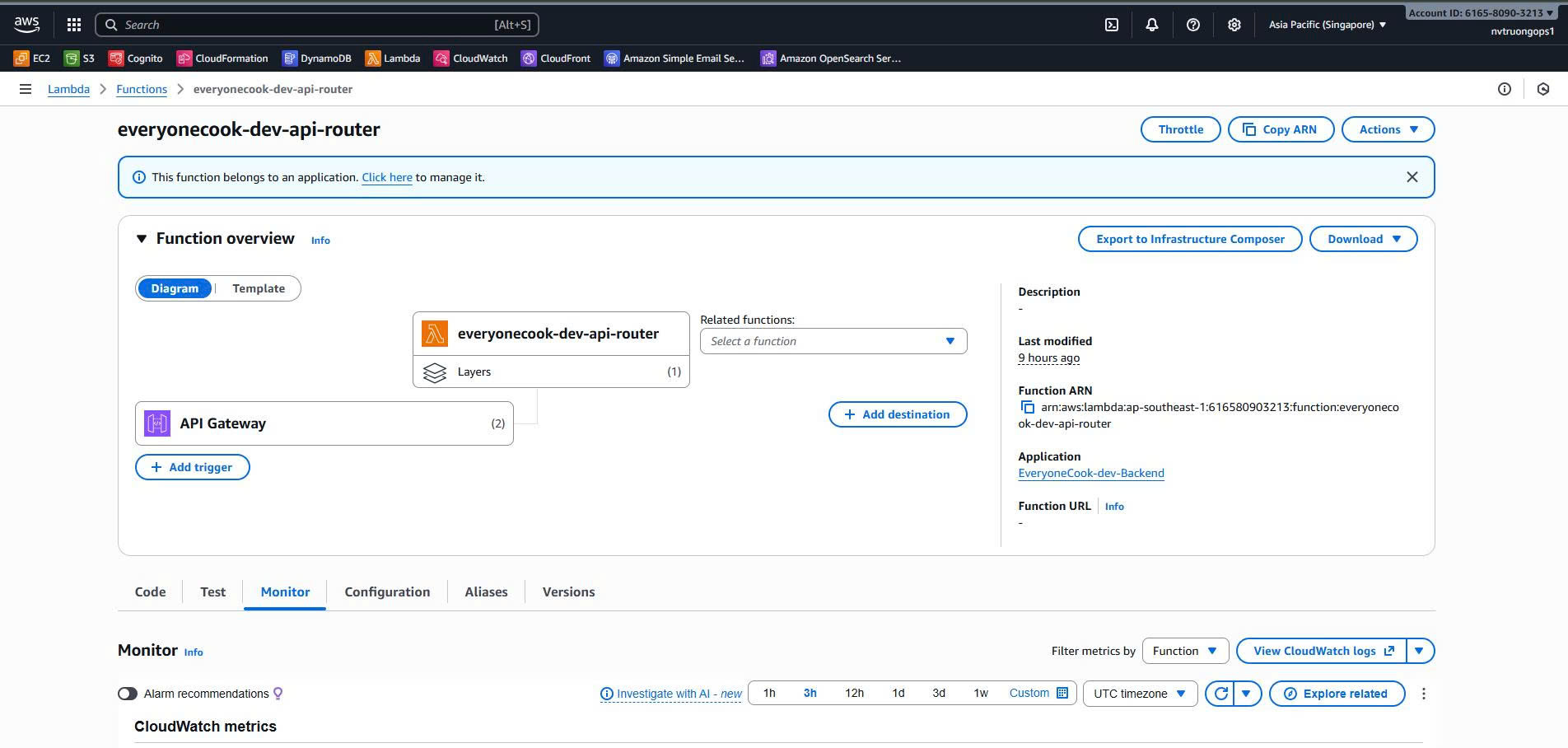

• Configure CloudWatch monitoring and alarms

What’s Actually Running:

• 8 Lambda Functions (6 business + 2 workers)
• 4 SQS Queues deployed (AI + Image queues with their DLQs)
• 1 WAF Web ACL with 5 security rules
• CloudWatch Logs and Alarms

What This Stack Includes

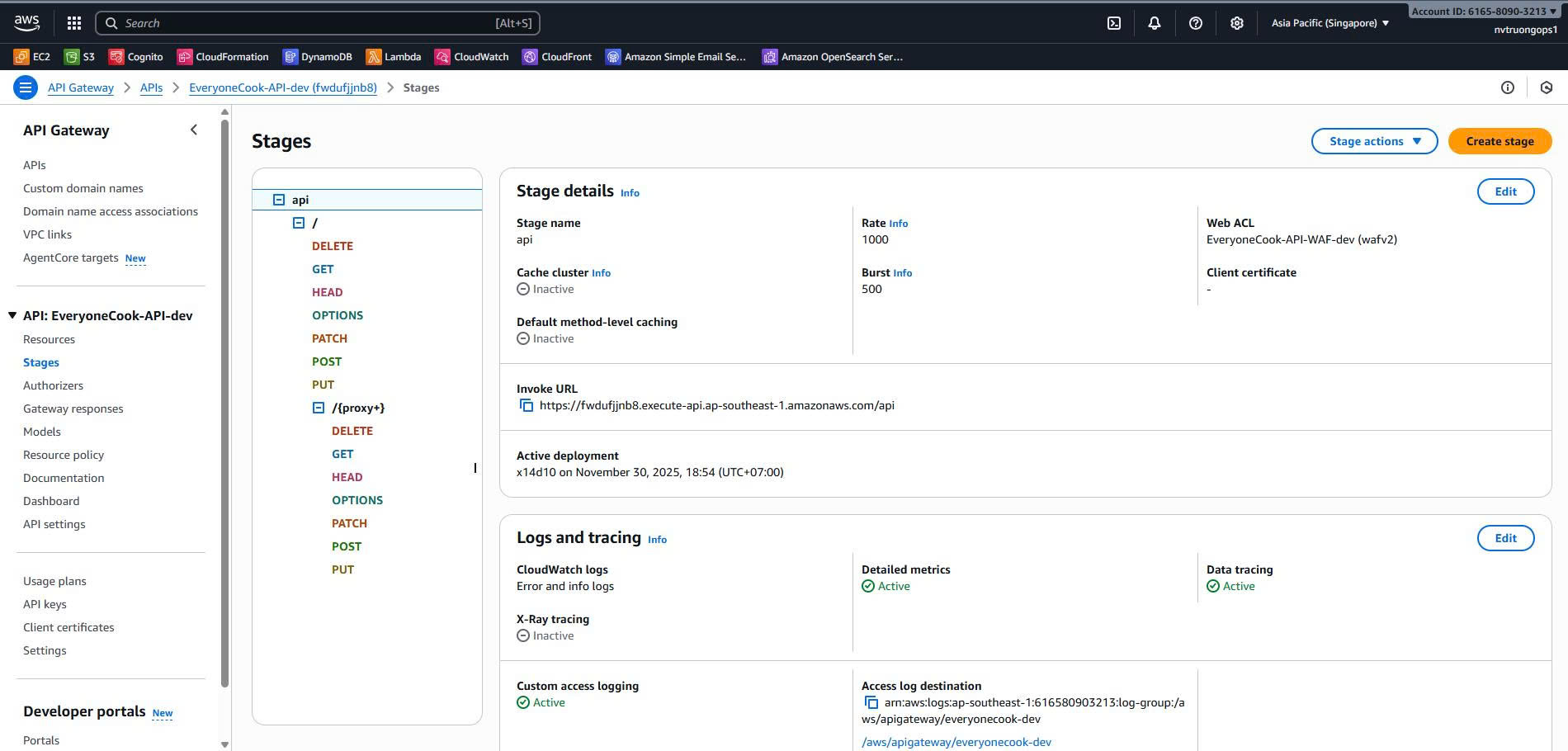

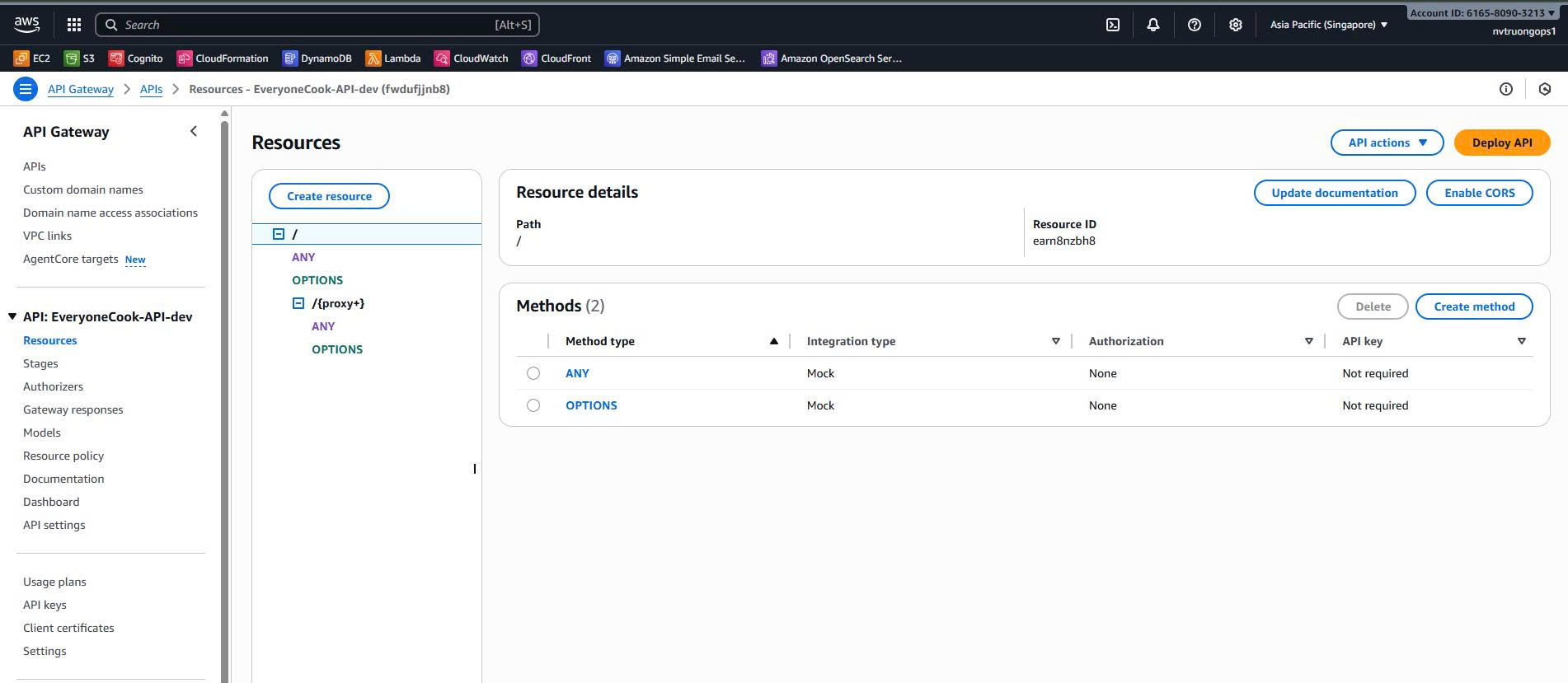

API Gateway (Dev Environment):

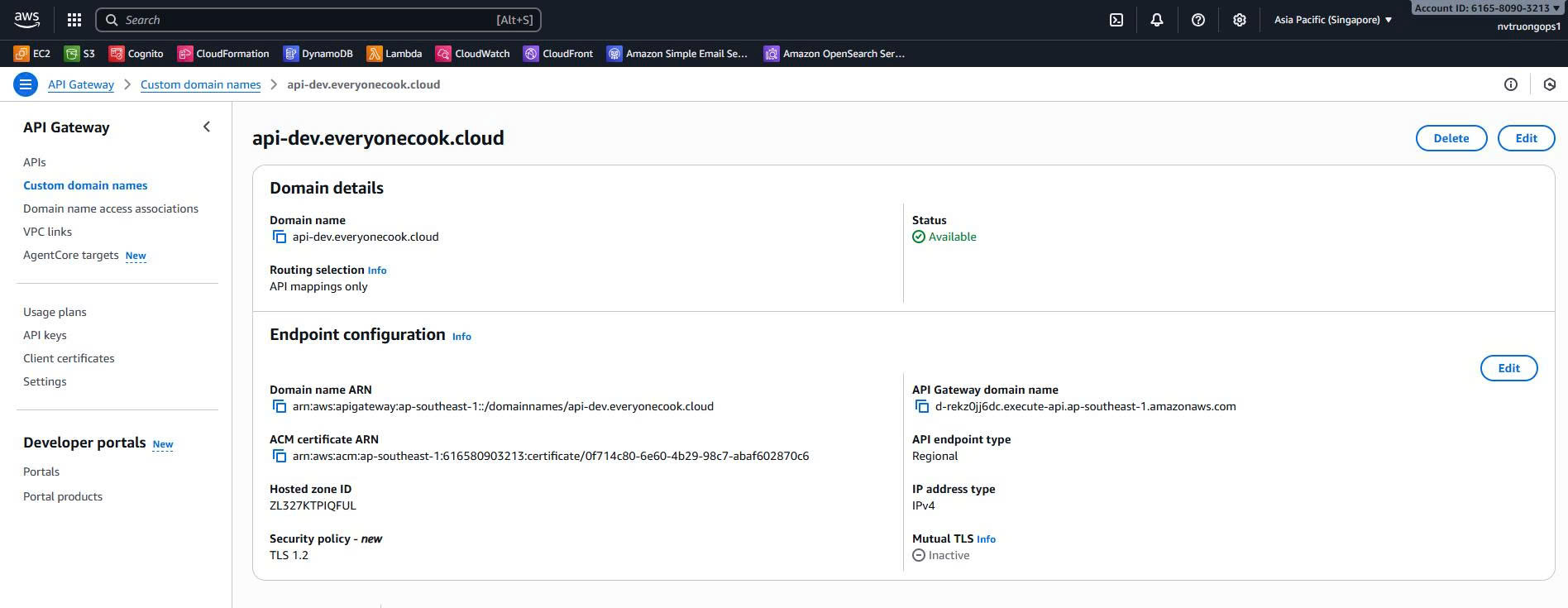

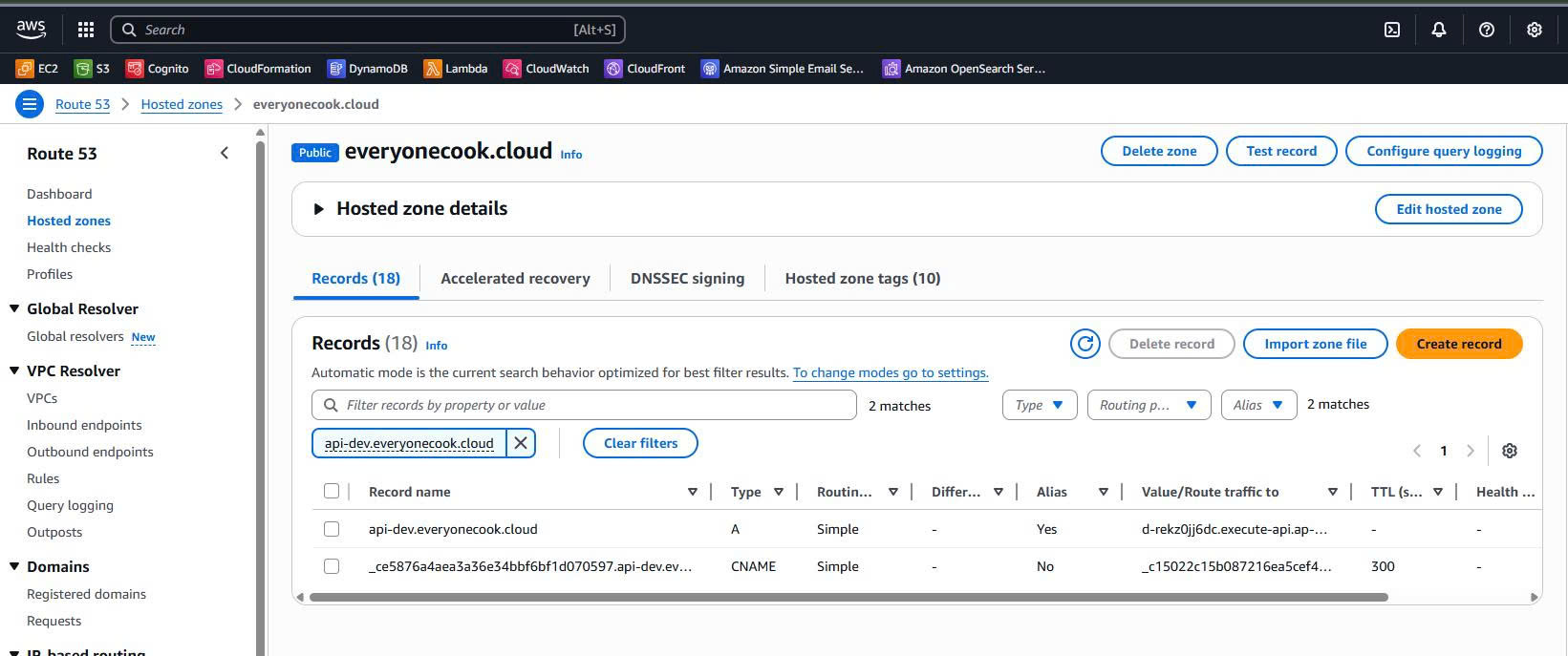

• Custom domain: api-dev.everyonecook.cloud
• ACM certificate for HTTPS (Regional - ap-southeast-1)
• Cognito authorizer for JWT validation
• Caching: Disabled (enabled only in production)
• Compression: Enabled (gzip/deflate for responses >1KB)
• Rate limiting: 10K req/sec, burst 5K
• Request validation: Body, parameters, headers
• Data trace logging: Enabled (disabled in production)

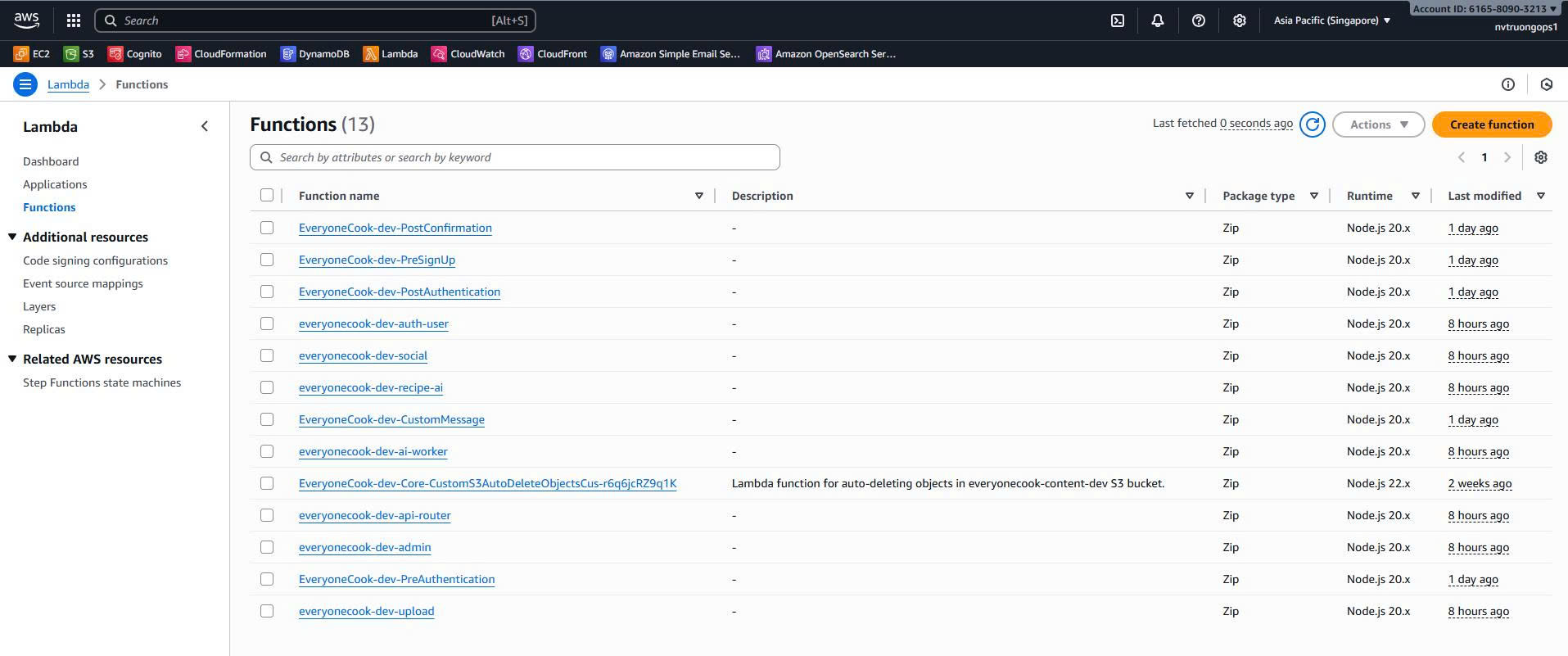

Lambda Functions (6 functions - Dev Environment):

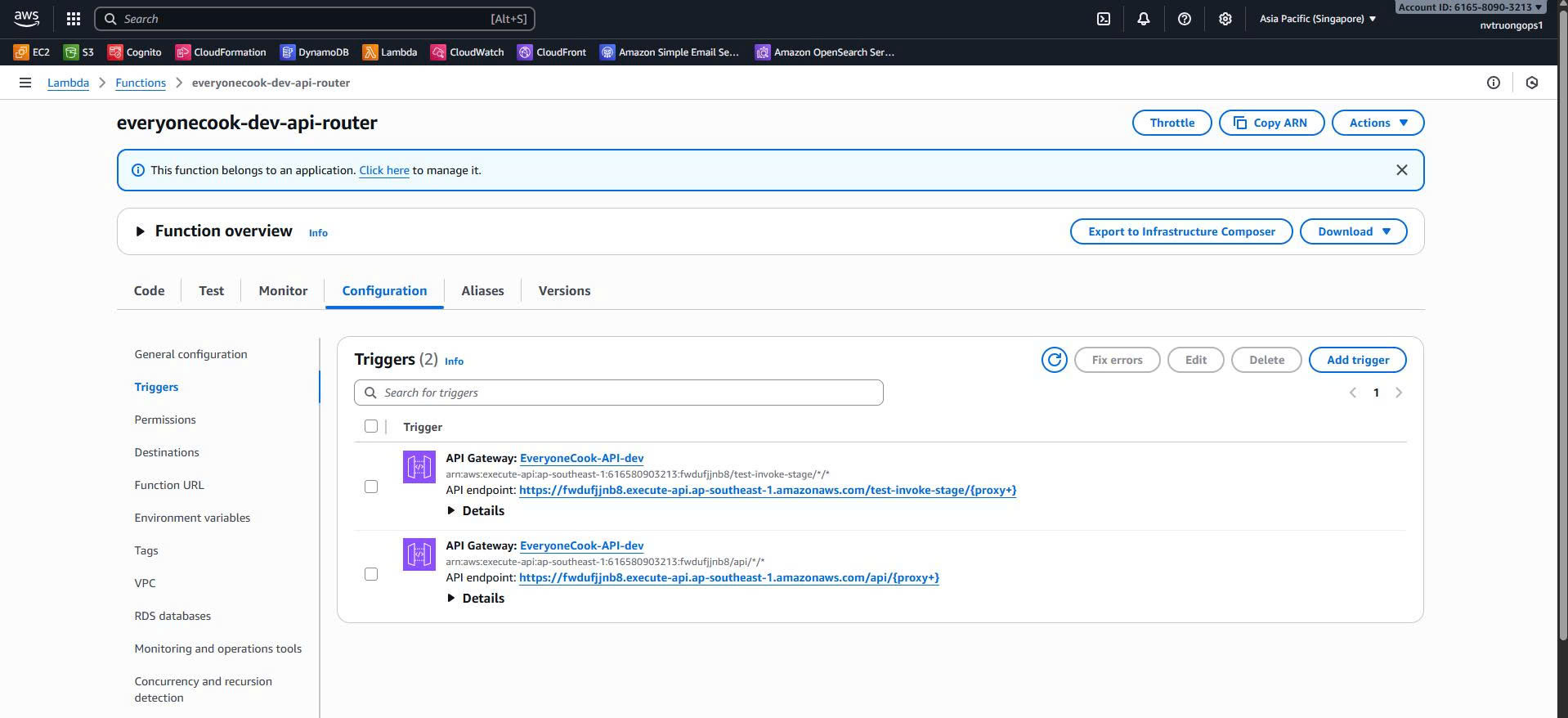

1. API Router (everyonecook-dev-api-router): Routes requests to target Lambda functions
2. Auth & User (everyonecook-dev-auth-user): Authentication, user profiles, privacy settings
3. Social (everyonecook-dev-social): Posts, comments, reactions, friends, notifications
4. Recipe & AI (everyonecook-dev-recipe-ai): Recipe CRUD, AI generation, search, trending
5. Admin (everyonecook-dev-admin): Content moderation, user management, appeals
6. Upload (everyonecook-dev-upload): S3 presigned URLs, file uploads

Source Code: All functions located in services/ directory

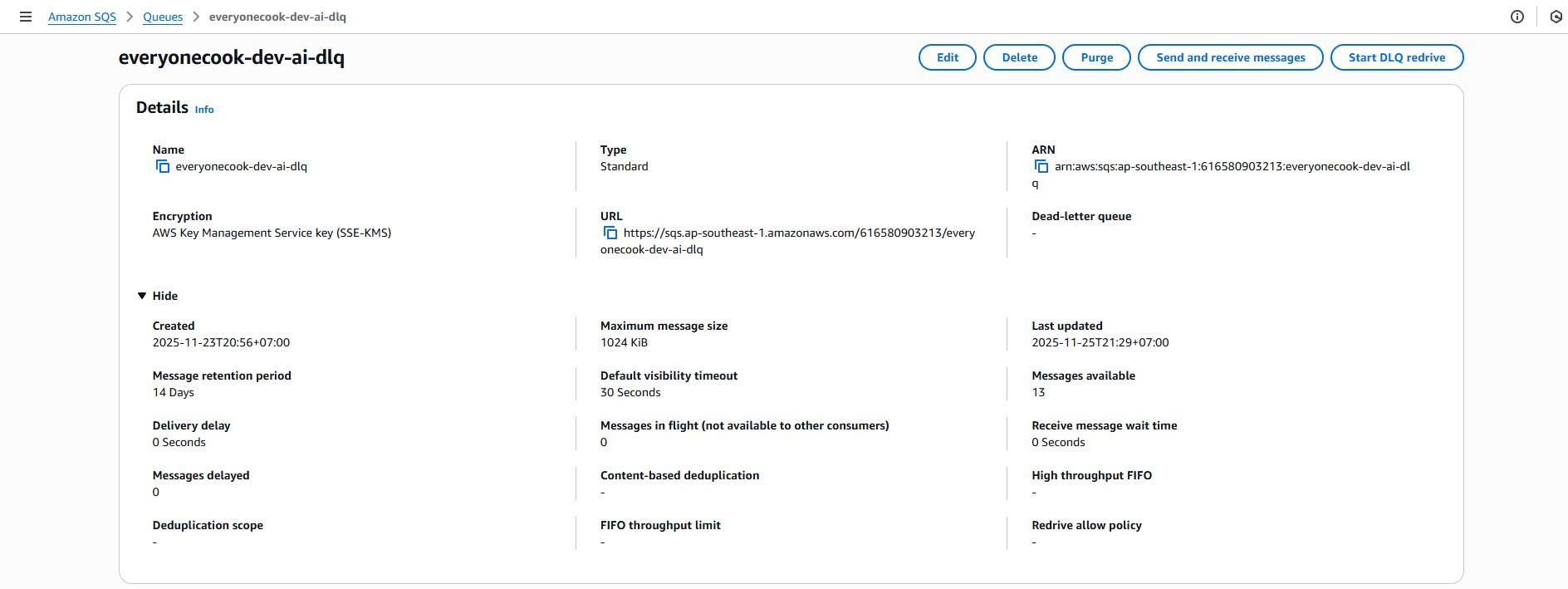

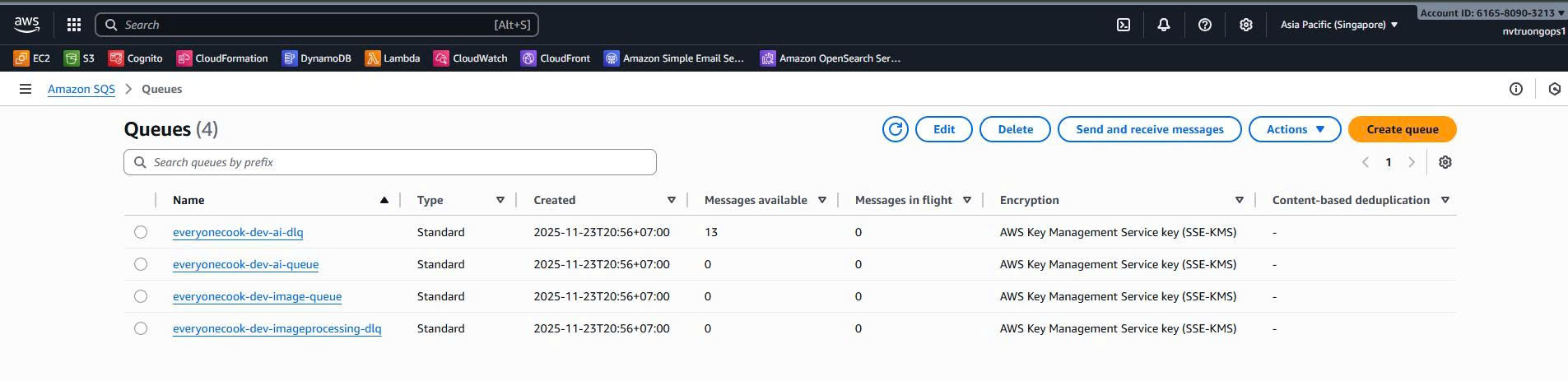

SQS Queues (2 active queues + 2 DLQs):

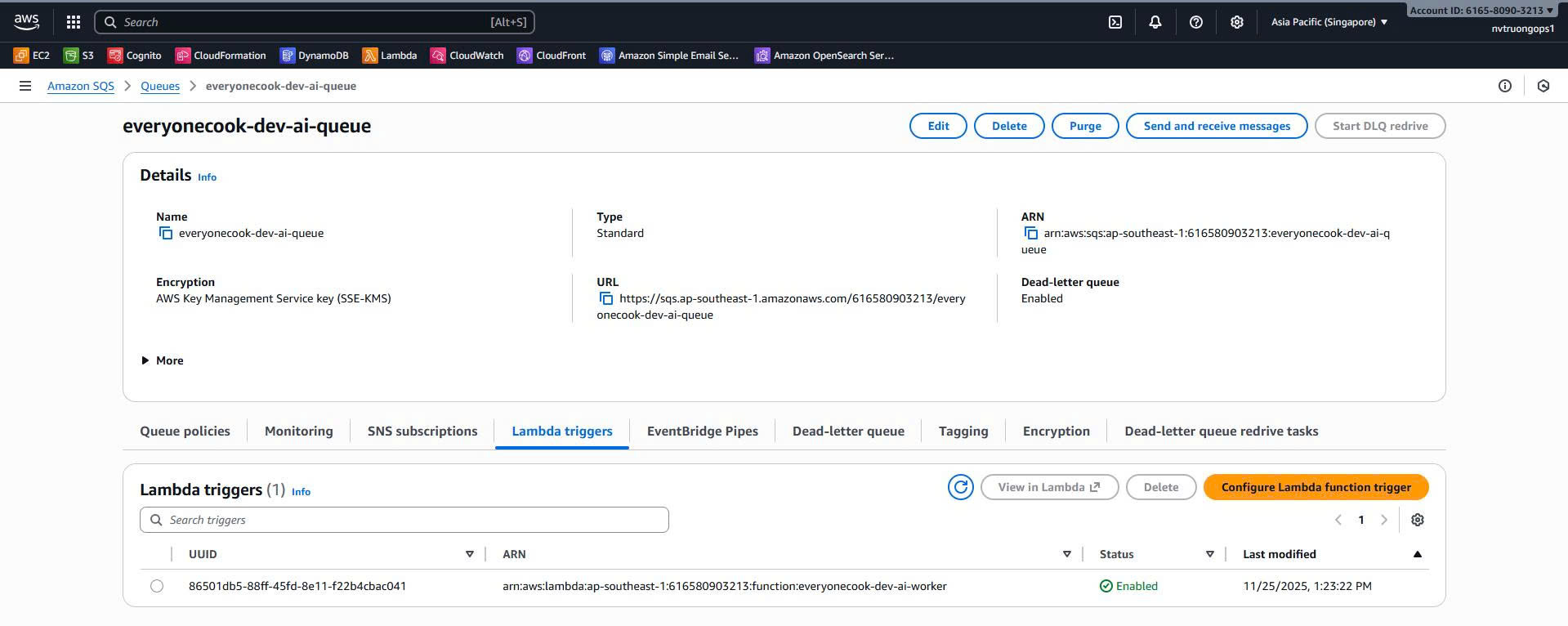

1. AI Queue (everyonecook-dev-ai-queue): Bedrock AI recipe generation (2-minute timeout) → AI Worker
2. Image Queue (everyonecook-dev-image-queue): S3 image optimization (60-second timeout) → Image Worker

Note: Analytics and Notification queues are defined in code but NOT deployed. Notifications are handled directly in Social Module.

Worker Lambda Functions (2 workers actively deployed):

1. AI Worker (ai-module/workers/): Processes AI generation jobs from AI Queue using Bedrock Claude 3 Haiku
2. Image Worker (image-worker/): Processes image optimization from Image Queue (resize, compress, watermark)

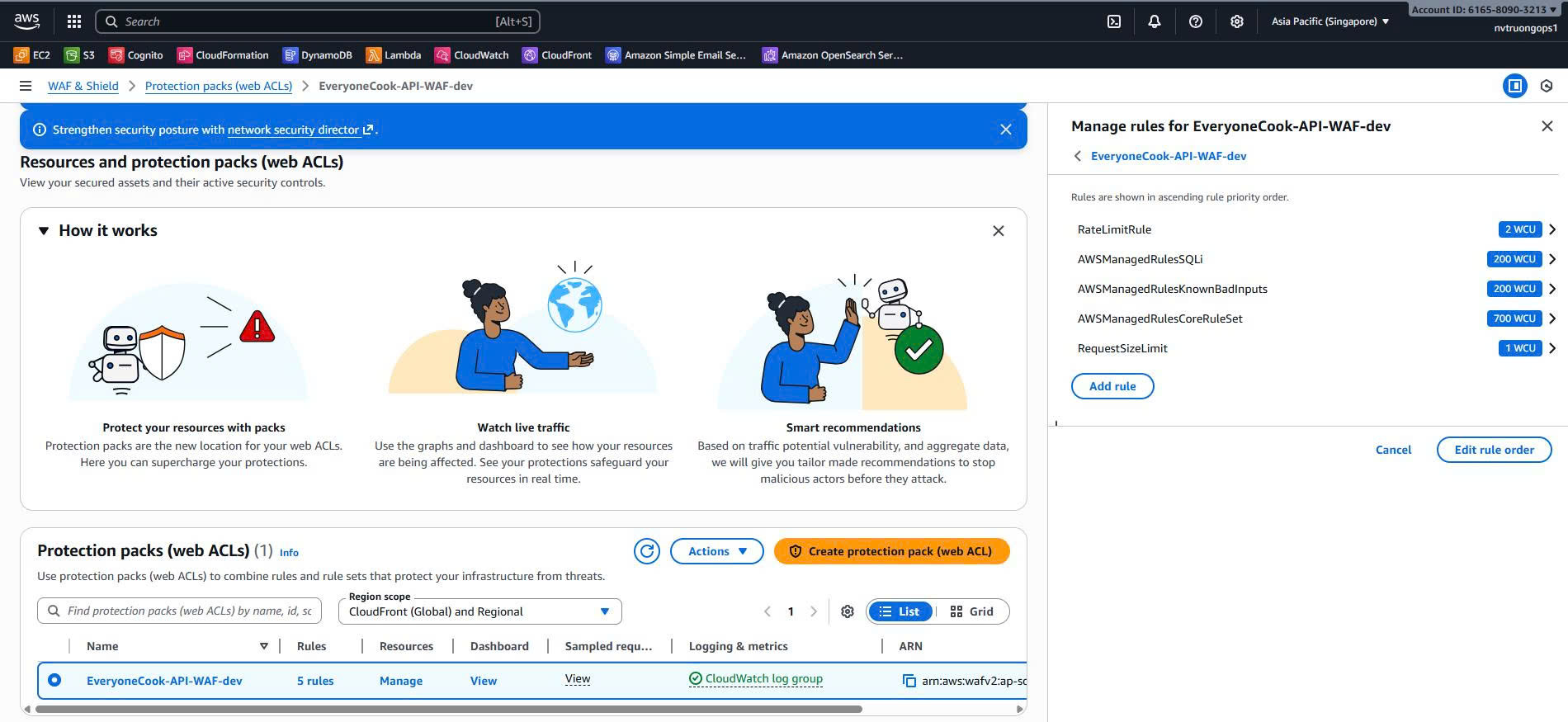

WAF Web ACL:

• Rate limiting: 2000 req/5min per IP
• SQL injection protection (AWS Managed)
• XSS protection (AWS Managed)
• Known bad inputs (AWS Managed)
• Request size limit: 10MB max

Architecture

┌──────────────────────────────────────────────────────────────────────┐
│              Backend Stack (Phase 4 - Dev Environment)                │
│                                                                       │
│  ┌─────────────────────────────────────────────────────────────────┐ │
│  │  WAF Web ACL (REGIONAL) - API Gateway Protection                │ │
│  │  ├─ Rate Limiting: 2000 req/5min per IP                        │ │
│  │  ├─ SQL Injection Protection (AWS Managed)                     │ │
│  │  ├─ XSS Protection (AWS Managed)                               │ │
│  │  ├─ Known Bad Inputs (AWS Managed)                             │ │
│  │  └─ Request Size Limit: 10MB max                               │ │
│  └─────────────────────────────────────────────────────────────────┘ │
│                          │                                            │
│                          ▼                                            │
│  ┌─────────────────────────────────────────────────────────────────┐ │
│  │  API Gateway REST API                                            │ │
│  │  ├─ Custom Domain: api.everyonecook.cloud                      │ │
│  │  ├─ ACM Certificate (Regional - ap-southeast-1)                │ │
│  │  ├─ Cognito Authorizer (JWT validation)                        │ │
│  │  ├─ Caching: 0.5GB, 5-min TTL (prod only)                     │ │
│  │  ├─ Compression: gzip/deflate (>1KB)                           │ │
│  │  ├─ Rate Limiting: 10K req/sec, burst 5K                       │ │
│  │  └─ Request Validation: Body, params, headers                  │ │
│  └─────────────────────────────────────────────────────────────────┘ │
│                          │                                            │
│                          ▼                                            │
│  ┌─────────────────────────────────────────────────────────────────┐ │
│  │  Lambda Function: API Router (512MB, 30s timeout)               │ │
│  │  ├─ JWT Validation & User Context Extraction                   │ │
│  │  ├─ Request Routing to Target Lambda Functions                 │ │
│  │  └─ Error Handling & Response Formatting                       │ │
│  └─────────────────────────────────────────────────────────────────┘ │
│                          │                                            │
│         ┌────────────────┼────────────────┬──────────────────┐       │
│         ▼                ▼                ▼                  ▼       │
│  ┌─────────┐      ┌─────────┐      ┌─────────┐      ┌─────────┐    │
│  │ Auth &  │      │ Social  │      │ Recipe  │      │ Admin   │    │
│  │ User    │      │ Module  │      │ & AI    │      │ Module  │    │
│  │ Lambda  │      │ Lambda  │      │ Lambda  │      │ Lambda  │    │
│  │ (512MB) │      │ (512MB) │      │ (512MB) │      │ (512MB) │    │
│  └─────────┘      └─────────┘      └─────────┘      └─────────┘    │
│                          │                │                          │
│                          ▼                ▼                          │
│  ┌─────────────────────────────────────────────────────────────────┐ │
│  │  SQS Queues + Worker Lambdas                                    │ │
│  │                                                                  │ │
│  │  1️⃣ AI Queue → AI Worker (1024MB, 60s)                          │ │
│  │     ├─ Bedrock Claude 3 Haiku (us-east-1)                      │ │
│  │     ├─ Recipe generation from ingredients                      │ │
│  │     └─ Visibility timeout: 2 minutes                           │ │
│  │                                                                  │ │
│  │  2️⃣ Image Queue → Image Worker (512MB, 60s)                     │ │
│  │     ├─ S3 image optimization                                   │ │
│  │     ├─ Resize, compress, watermark                             │ │
│  │     └─ Visibility timeout: 60 seconds                          │ │
│  │                                                                  │ │
│  │  📌 Only 2 queues actively used (AI & Image)                   │ │
│  │  📌 Analytics & Notification queues exist but no workers       │ │
│  │  📌 All queues have DLQ (14-day retention)                      │ │
│  └─────────────────────────────────────────────────────────────────┘ │
│                                                                       │
│  Dependencies from Other Stacks:                                     │
│  ├─ DynamoDB Table (Core Stack)                                     │
│  ├─ S3 Content Bucket (Core Stack)                                  │
│  ├─ CloudFront Distribution (Core Stack)                            │
│  ├─ Cognito User Pool (Auth Stack)                                  │
│  └─ Cognito User Pool Client (Auth Stack)                           │
└──────────────────────────────────────────────────────────────────────┘

Stack Configuration

File Structure

infrastructure/lib/stacks/
└── backend-stack.ts          # Backend Stack implementation (2965 lines)
    ├─ API Gateway configuration
    ├─ Lambda function definitions (6 functions)
    ├─ SQS queue configuration (4 queues + 4 DLQs)
    ├─ Worker Lambda definitions (2 active workers)
    └─ WAF Web ACL configuration

services/                     # Lambda function source code
├── api-router/               # API Router Lambda
├── auth-module/              # Auth & User Lambda
├── social-module/            # Social Lambda
├── recipe-module/            # Recipe & AI Lambda
├── admin-module/             # Admin Lambda
├── upload-module/            # Upload Lambda
├── ai-module/                # AI Worker Lambda
│   └── workers/
├── image-worker/             # Image Worker Lambda
├── websocket-module/         # WebSocket (separate stack, not in Backend)
└── shared/                   # Shared utilities

Code Implementation

File: infrastructure/lib/stacks/backend-stack.ts

1. Stack Interface & Constructor

export interface BackendStackProps extends BaseStackProps {
  dynamoTable: cdk.aws_dynamodb.ITable;
  contentBucket: cdk.aws_s3.IBucket;
  distribution: cdk.aws_cloudfront.IDistribution;
  userPool: cdk.aws_cognito.IUserPool;
  userPoolClient: cdk.aws_cognito.IUserPoolClient;
}

export class BackendStack extends BaseStack {
  // Lambda Layer
  public readonly sharedLayer: SharedDependenciesLayer;

  // API Gateway
  public readonly api: cdk.aws_apigateway.RestApi;
  public readonly cognitoAuthorizer: cdk.aws_apigateway.CognitoUserPoolsAuthorizer;
  public readonly apiDomainName: cdk.aws_apigateway.DomainName;

  // Request Validators
  public readonly bodyValidator: cdk.aws_apigateway.RequestValidator;
  public readonly paramsValidator: cdk.aws_apigateway.RequestValidator;
  public readonly fullValidator: cdk.aws_apigateway.RequestValidator;

  // Lambda Functions (6 business functions)
  public readonly apiRouterFunction: cdk.aws_lambda.Function;    // services/api-router
  public readonly authUserFunction: cdk.aws_lambda.Function;     // services/auth-module
  public readonly socialFunction: cdk.aws_lambda.Function;       // services/social-module
  public readonly recipeAIFunction: cdk.aws_lambda.Function;     // services/recipe-module
  public readonly adminFunction: cdk.aws_lambda.Function;        // services/admin-module
  public readonly uploadFunction: cdk.aws_lambda.Function;       // services/upload-module

  // SQS Queues (4 queues + 4 DLQs)
  public readonly aiQueue: cdk.aws_sqs.Queue;
  public readonly imageProcessingQueue: cdk.aws_sqs.Queue;
  public readonly analyticsQueue: cdk.aws_sqs.Queue;
  public readonly notificationQueue: cdk.aws_sqs.Queue;

  // Worker Lambdas (2 active workers)
  public readonly aiWorker: cdk.aws_lambda.Function;             // services/ai-module/workers
  public readonly imageWorker?: cdk.aws_lambda.Function;         // services/image-worker
  // Note: analyticsWorker & notificationWorker exist in code but NOT deployed
  // public readonly analyticsWorker?: cdk.aws_lambda.Function;  // Commented out
  // public readonly notificationWorker?: cdk.aws_lambda.Function; // Not created

  // WAF WebACL
  public readonly apiGatewayWebAcl?: cdk.aws_wafv2.CfnWebACL;

  constructor(scope: Construct, id: string, props: BackendStackProps) {
    super(scope, id, props);

    // Add stack-specific tags
    cdk.Tags.of(this).add('StackType', 'Backend');
    cdk.Tags.of(this).add('Layer', 'Application');
    cdk.Tags.of(this).add('CostCenter', `Backend-${this.config.environment}`);

    // Create resources (see implementation below)
    // 1. Shared Dependencies Layer
    // 2. SQS Queues and DLQs
    // 3. API Gateway
    // 4. Lambda Functions
    // 5. Worker Lambdas
    // 6. WAF Web ACL
    // 7. Export outputs
  }
}

2. API Gateway Configuration

private createAPIGateway(): cdk.aws_apigateway.RestApi {
  const cachingEnabled = this.config.apiGateway.caching.enabled;
  const compressionEnabled = this.config.apiGateway.compression;

  const api = new cdk.aws_apigateway.RestApi(this, 'EveryoneCookAPI', {
    restApiName: `EveryoneCook-API-${this.config.environment}`,
    description: `Everyone Cook REST API - ${this.config.environment}`,

    // Compression for responses >1KB
    minCompressionSize: compressionEnabled ? cdk.Size.kibibytes(1) : undefined,

    deployOptions: {
      stageName: 'api',

      // Caching configuration (production only)
      cachingEnabled: cachingEnabled,
      cacheClusterEnabled: cachingEnabled,
      cacheClusterSize: cachingEnabled ? this.config.apiGateway.caching.cacheSize : undefined,
      cacheTtl: cachingEnabled ? cdk.Duration.seconds(this.config.apiGateway.caching.ttl) : undefined,
      cacheDataEncrypted: cachingEnabled,

      // Throttling settings
      throttlingRateLimit: this.config.apiGateway.throttling.rateLimit,
      throttlingBurstLimit: this.config.apiGateway.throttling.burstLimit,

      // X-Ray Tracing - Disabled (CloudWatch Logs sufficient)
      tracingEnabled: false,

      // Logging configuration
      loggingLevel: cdk.aws_apigateway.MethodLoggingLevel.INFO,
      dataTraceEnabled: this.config.environment !== 'prod',
      metricsEnabled: true,

      // Access logging
      accessLogDestination: new cdk.aws_apigateway.LogGroupLogDestination(
        new cdk.aws_logs.LogGroup(this, 'APIGatewayAccessLogs', {
          logGroupName: `/aws/apigateway/everyonecook-${this.config.environment}`,
          retention: this.config.cloudwatch.logRetentionDays,
        })
      ),
    },

    // CORS configuration
    defaultCorsPreflightOptions: {
      allowOrigins: [
        `https://${this.config.domains.frontend}`,
        `https://www.${this.config.domains.frontend}`,
        ...(this.config.environment !== 'prod' ? ['http://localhost:3000'] : []),
      ],
      allowMethods: ['GET', 'POST', 'PUT', 'DELETE', 'PATCH', 'OPTIONS'],
      allowHeaders: [
        'Content-Type',
        'Authorization',
        'X-Amz-Date',
        'X-Api-Key',
        'X-Amz-Security-Token',
        'X-Correlation-Id',
        'Cache-Control',
        'Accept-Encoding',
      ],
      allowCredentials: false,
      maxAge: cdk.Duration.hours(1),
    },

    // Endpoint configuration
    endpointConfiguration: {
      types: [cdk.aws_apigateway.EndpointType.REGIONAL],
    },

    // Binary media types
    binaryMediaTypes: ['image/*', 'application/octet-stream'],
  });

  // Add Gateway Responses with CORS headers
  const corsHeaders = {
    'gatewayresponse.header.Access-Control-Allow-Origin': "'*'",
    'gatewayresponse.header.Access-Control-Allow-Headers': "'Content-Type,Authorization,...'",
    'gatewayresponse.header.Access-Control-Allow-Methods': "'GET,POST,PUT,DELETE,PATCH,OPTIONS'",
  };

  api.addGatewayResponse('Unauthorized', {
    type: cdk.aws_apigateway.ResponseType.UNAUTHORIZED,
    statusCode: '401',
    responseHeaders: corsHeaders,
  });

  return api;
}

3. SQS Queue Configuration

private createAIQueue(): cdk.aws_sqs.Queue {
  const queue = new cdk.aws_sqs.Queue(this, 'AIQueue', {
    queueName: `everyonecook-${this.config.environment}-ai-queue`,
    visibilityTimeout: cdk.Duration.seconds(120), // 2 minutes for AI processing
    retentionPeriod: cdk.Duration.days(4),
    deadLetterQueue: {
      queue: this.aiDLQ,
      maxReceiveCount: 3,
    },
    encryption: cdk.aws_sqs.QueueEncryption.KMS_MANAGED,
  });

  // CloudWatch alarm for queue depth
  if (this.config.cloudwatch.alarms.enabled) {
    new cdk.aws_cloudwatch.Alarm(this, 'AIQueueDepthAlarm', {
      alarmName: `EveryoneCook-${this.config.environment}-AI-Queue-Depth`,
      metric: queue.metricApproximateNumberOfMessagesVisible(),
      threshold: 100,
      evaluationPeriods: 2,
    });
  }

  return queue;
}

4. Lambda Function Configuration

private createAuthUserLambda(props: BackendStackProps): cdk.aws_lambda.Function {
  const logGroup = new cdk.aws_logs.LogGroup(this, 'AuthUserLogGroup', {
    logGroupName: `/aws/lambda/everyonecook-${this.config.environment}-auth-user`,
    retention: this.config.cloudwatch.logRetentionDays,
  });

  const authUserFunction = new cdk.aws_lambda.Function(this, 'AuthUserFunction', {
    functionName: `everyonecook-${this.config.environment}-auth-user`,
    runtime: cdk.aws_lambda.Runtime.NODEJS_20_X,
    handler: 'services/auth-module/index.handler',
    code: this.createLambdaCode('services/auth-module/deployment'),
    layers: [this.sharedLayer.layer],
    memorySize: 512,
    timeout: cdk.Duration.seconds(30),
    tracing: cdk.aws_lambda.Tracing.DISABLED,
    environment: {
      DYNAMODB_TABLE: props.dynamoTable.tableName,
      USER_POOL_ID: props.userPool.userPoolId,
      USER_POOL_CLIENT_ID: props.userPoolClient.userPoolClientId,
      CONTENT_BUCKET: props.contentBucket.bucketName,
      LOG_LEVEL: this.config.environment === 'prod' ? 'INFO' : 'DEBUG',
    },
    logGroup: logGroup,
  });

  // Grant permissions
  props.dynamoTable.grantReadWriteData(authUserFunction);
  props.contentBucket.grantReadWrite(authUserFunction);
  props.userPool.grant(authUserFunction, 'cognito-idp:AdminGetUser', 'cognito-idp:ListUsers');

  return authUserFunction;
}

5. WAF Web ACL Configuration

private createApiGatewayWebAcl(): cdk.aws_wafv2.CfnWebACL {
  const webAcl = new cdk.aws_wafv2.CfnWebACL(this, 'ApiGatewayWebACL', {
    name: `EveryoneCook-API-WAF-${this.config.environment}`,
    scope: 'REGIONAL',
    defaultAction: { allow: {} },
    visibilityConfig: {
      sampledRequestsEnabled: true,
      cloudWatchMetricsEnabled: true,
      metricName: `EveryoneCook-API-WAF-${this.config.environment}`,
    },
    rules: [
      // Rule 1: Rate Limiting
      {
        name: 'RateLimitRule',
        priority: 0,
        statement: {
          rateBasedStatement: {
            limit: 2000, // 2000 requests per 5 minutes
            aggregateKeyType: 'IP',
          },
        },
        action: { block: {} },
        visibilityConfig: {
          sampledRequestsEnabled: true,
          cloudWatchMetricsEnabled: true,
          metricName: 'RateLimitRule',
        },
      },
      // Rule 2-5: AWS Managed Rules (SQL injection, XSS, etc.)
      // ... see full implementation
    ],
  });

  return webAcl;
}

Key Configuration Details

1. Shared Dependencies Layer

The Backend Stack uses a Lambda Layer to share common dependencies across all Lambda functions:

// Create Shared Dependencies Layer
this.sharedLayer = new SharedDependenciesLayer(this, 'SharedDependenciesLayer');

// Benefits:
// - 90% reduction in deployment size (8MB → 200KB per Lambda)
// - Faster deployments
// - Consistent dependency versions
// - Lower storage costs

// Dependencies included:
// - AWS SDK v3 clients (DynamoDB, Lambda, Cognito, S3, SQS, Bedrock)
// - uuid, jsonwebtoken, jwks-rsa

2. API Gateway Custom Domain

The stack creates a custom domain for API Gateway with ACM certificate:

// Custom domain configuration
const domainName = this.config.domains.api; // api.everyonecook.cloud

// Create ACM certificate in ap-southeast-1 (Regional endpoint)
const certificate = new acm.Certificate(this, 'ApiGatewayCertificate', {
  domainName: '*.everyonecook.cloud',
  validation: acm.CertificateValidation.fromDns(hostedZone),
});

// Create API Gateway DomainName
const apiDomainName = new cdk.aws_apigateway.DomainName(this, 'ApiDomain', {
  domainName: this.config.domains.api,
  certificate: certificate,
  endpointType: cdk.aws_apigateway.EndpointType.REGIONAL,
  securityPolicy: cdk.aws_apigateway.SecurityPolicy.TLS_1_2,
});

// Create Route 53 A record (Alias)
new cdk.aws_route53.ARecord(this, 'ApiAliasRecord', {
  zone: hostedZone,
  recordName: this.config.domains.api,
  target: cdk.aws_route53.RecordTarget.fromAlias(
    new cdk.aws_route53_targets.ApiGatewayDomain(apiDomainName)
  ),
});

Environments:

• Dev: api-dev.everyonecook.cloud
• Staging: api-staging.everyonecook.cloud
• Prod: api.everyonecook.cloud

3. Request Validation

The stack implements three levels of request validation:

// 1. Body Validator - Validate request body only
this.bodyValidator = new cdk.aws_apigateway.RequestValidator(this, 'BodyValidator', {
  restApi: api,
  validateRequestBody: true,
  validateRequestParameters: false,
});

// 2. Params Validator - Validate query strings and headers only
this.paramsValidator = new cdk.aws_apigateway.RequestValidator(this, 'ParamsValidator', {
  restApi: api,
  validateRequestBody: false,
  validateRequestParameters: true,
});

// 3. Full Validator - Validate both body and parameters
this.fullValidator = new cdk.aws_apigateway.RequestValidator(this, 'FullValidator', {
  restApi: api,
  validateRequestBody: true,
  validateRequestParameters: true,
});

// Benefits:
// - Early rejection of invalid requests (before Lambda invocation)
// - Cost optimization: No Lambda charges for invalid requests
// - Security: Prevents malformed requests
// - Performance: Faster error responses

4. Resource Naming Convention

All resources follow a consistent naming pattern:

// Lambda function format: everyonecook-{env}-{function}
functionName: `everyonecook-${this.config.environment}-auth-user`

// SQS queue format: everyonecook-{env}-{queue}
queueName: `everyonecook-${this.config.environment}-ai-queue`

// API Gateway format: EveryoneCook-API-{env}
restApiName: `EveryoneCook-API-${this.config.environment}`

// WAF format: EveryoneCook-API-WAF-{env}
name: `EveryoneCook-API-WAF-${this.config.environment}`

Example:

• Stack name: EveryoneCook-dev-Backend
• API: EveryoneCook-API-dev
• Lambda: everyonecook-dev-auth-user
• Queue: everyonecook-dev-ai-queue

5. Resource Tags

Every resource is tagged for cost tracking and management:

{
  Stack: 'EveryoneCook-dev-Backend',
  Environment: 'dev',
  StackType: 'Backend',
  Layer: 'Application',
  CostCenter: 'Backend-dev',
  Component: 'API' | 'EventProcessing' | 'Security',
  Module: 'AuthUser' | 'Social' | 'RecipeAI' | 'Admin' | 'Upload',
  Purpose: 'REST-API' | 'RequestRouting' | 'AI-Processing',
  Project: 'EveryoneCook'
}

Stack Outputs

After deployment, the stack exports the following values:

Deployment Steps

Step 1: Review Configuration

Navigate to the infrastructure directory:

cd D:\Project_AWS\everyonecook\infrastructure

Verify the Development environment configuration in config/environment.ts:

dev: {
  environment: 'dev',
  account: 'YOUR_AWS_ACCOUNT_ID',
  region: 'ap-southeast-1',
  domains: {
    frontend: 'dev.everyonecook.cloud',
    api: 'api-dev.everyonecook.cloud',
    cdn: 'cdn-dev.everyonecook.cloud',
  },
  apiGateway: {
    caching: {
      enabled: false, //  Disabled in dev (enabled in prod)
      cacheSize: '0.5', // 0.5GB cache (prod only)
      ttl: 300, // 5 minutes (prod only)
    },
    compression: true, //  Enabled in all environments
    throttling: {
      rateLimit: 10000,
      burstLimit: 5000,
    },
  },
  cloudwatch: {
    logRetentionDays: 7, // Dev: 7 days, Staging: 30 days, Prod: 90 days
    alarms: {
      enabled: true,
    },
  },
  // ... other configs
}

For Staging/Production: Update the --context environment= parameter in deployment commands.

Step 2: Prepare Lambda Deployment Packages

Before deploying, prepare the Lambda deployment packages for 8 Lambda functions + 1 Layer:

# 1. Prepare Shared Layer FIRST (required by all Lambdas)
cd D:\Project_AWS\everyonecook\layers\shared-dependencies
.\prepare-layer.ps1

# 2. Prepare Business Lambda Functions (6 functions)
cd D:\Project_AWS\everyonecook\services\api-router
.\prepare-deployment-layer.ps1  # or prepare-deployment.ps1

cd D:\Project_AWS\everyonecook\services\auth-module
.\prepare-deployment-layer.ps1

cd D:\Project_AWS\everyonecook\services\social-module
.\prepare-deployment-layer.ps1

cd D:\Project_AWS\everyonecook\services\recipe-module
.\prepare-deployment-layer.ps1

cd D:\Project_AWS\everyonecook\services\admin-module
.\prepare-deployment-layer.ps1

cd D:\Project_AWS\everyonecook\services\upload-module
.\prepare-deployment-layer.ps1

# 3. Prepare Worker Lambda Functions (2 workers)
cd D:\Project_AWS\everyonecook\services\ai-module
.\prepare-deployment.ps1  # AI Worker uses prepare-deployment.ps1

cd D:\Project_AWS\everyonecook\services\image-worker
.\prepare-deployment-layer.ps1

Important Notes:

• Each service must have a deployment/ folder after running prepare script
• Shared Layer must be built FIRST as all Lambdas depend on it
• Check for prepare-deployment.ps1 or prepare-deployment-layer.ps1 in each service folder
• Total deployment size: ~8MB → ~200KB per Lambda (thanks to Shared Layer)

Step 3: Synthesize CloudFormation Template

Generate the CloudFormation template to review changes:

# Return to infrastructure directory
cd D:\Project_AWS\everyonecook\infrastructure

# Synthesize template
npx cdk synth EveryoneCook-dev-Backend --context environment=dev

Expected output shows the CloudFormation template with all resources.

Step 4: Deploy Backend Stack

Deploy the Backend stack to AWS:

# Deploy Backend Stack only
npx cdk deploy EveryoneCook-dev-Backend --context environment=dev

# Or deploy with approval
npx cdk deploy EveryoneCook-dev-Backend --context environment=dev --require-approval never

Expected output:

✨  Synthesis time: 5.23s

EveryoneCook-dev-Backend: deploying...
[0%] start: Publishing abc123:current_account-current_region
[33%] success: Published abc123:current_account-current_region
[33%] start: Publishing def456:current_account-current_region
[66%] success: Published def456:current_account-current_region
[66%] start: Publishing EveryoneCook-dev-Backend
[100%] success: Published EveryoneCook-dev-Backend

EveryoneCook-dev-Backend: creating CloudFormation changeset...

   EveryoneCook-dev-Backend

✨  Deployment time: 420.15s

Outputs:
EveryoneCook-dev-Backend.ApiUrl = https://api-dev.everyonecook.cloud
EveryoneCook-dev-Backend.ApiId = abc123xyz
EveryoneCook-dev-Backend.ApiStage = api
EveryoneCook-dev-Backend.ApiDomainName = api-dev.everyonecook.cloud
EveryoneCook-dev-Backend.AIQueueUrl = https://sqs.ap-southeast-1.amazonaws.com/123456789/everyonecook-dev-ai-queue
EveryoneCook-dev-Backend.ImageQueueUrl = https://sqs.ap-southeast-1.amazonaws.com/123456789/everyonecook-dev-image-queue
EveryoneCook-dev-Backend.WafWebAclArn = arn:aws:wafv2:ap-southeast-1:123456789:regional/webacl/EveryoneCook-API-WAF-dev/...

Stack ARN:
arn:aws:cloudformation:ap-southeast-1:123456789:stack/EveryoneCook-dev-Backend/...

✨  Total time: 425.38s

Deployment time: ~7 minutes (includes certificate validation)

Step 5: Verify Deployment on AWS Console

5.1: Verify API Gateway

1. Navigate to API Gateway Console
2. Select region: ap-southeast-1
3. Click on EveryoneCook-API-dev

API Gateway dashboard showing API name, stage, custom domain, caching status and throttling settings

4. Click on Stages → api
5. Verify stage settings:
   • Cache Settings: Enabled (prod) / Disabled (dev)
   • Cache capacity: 0.5 GB (prod only)
   • Default TTL: 300 seconds (prod only)
   • Throttling: 10000 requests/sec
   • Burst: 5000 requests/sec

Stage settings showing caching and throttling configuration

6. Click on Custom domain names
7. Verify custom domain:
   • Domain name: api-dev.everyonecook.cloud
   • Certificate: ACM certificate (Regional)
   • Base path mapping: / → api stage

Custom domain configuration with ACM certificate

5.2: Verify Lambda Functions

1. Navigate to Lambda Console
2. Select region: ap-southeast-1
3. Verify all 8 Lambda functions exist:

Lambda functions list showing all 8 functions with runtime and configuration

4. Click on everyonecook-dev-api-router
5. Verify configuration:
   • Environment variables: DYNAMODB_TABLE, USER_POOL_ID, etc.
   • Layers: SharedDependenciesLayer
   • Triggers: API Gateway (Proxy integration)

API Router function showing environment variables, layers, and API Gateway trigger

6. Click on Monitoring tab
7. Verify CloudWatch Logs integration:
   • Log group: /aws/lambda/everyonecook-dev-api-router
   • Retention: Based on environment config

Lambda monitoring dashboard showing CloudWatch Logs and metrics

5.3: Verify SQS Queues

1. Navigate to SQS Console
2. Select region: ap-southeast-1
3. Verify 4 active queues exist (2 main + 2 DLQs):

Note: Only AI and Image queues are actively used. Analytics and Notification queues exist in code but are not deployed.

SQS queues list showing 4 active queues: ai-queue, ai-dlq, image-queue, image-dlq

4. Click on everyonecook-dev-ai-queue
5. Verify queue configuration:
   • Visibility timeout: 2 minutes
   • Message retention: 4 days
   • Dead-letter queue: everyonecook-dev-ai-dlq
   • Maximum receives: 3
   • Encryption: KMS managed

AI Queue configuration showing visibility timeout, retention, DLQ, and encryption settings

6. Click on Lambda triggers tab
7. Verify Lambda trigger:
   • Function: everyonecook-dev-ai-worker
   • Batch size: 1
   • Batch window: 0 seconds

AI Queue Lambda trigger showing ai-worker function with batch configuration

5.4: Verify WAF Web ACL

1. Navigate to WAF & Shield Console
2. Select region: ap-southeast-1 (Regional)
3. Click on Web ACLs
4. Click on EveryoneCook-API-WAF-dev

WAF Web ACL dashboard for EveryoneCook API protection

5. Click on Rules tab
6. Verify all 5 rules exist:

5.5: Verify CloudWatch Alarms

1. Navigate to CloudWatch Console
2. Select region: ap-southeast-1
3. Filter by: EveryoneCook-dev-Backend

CloudWatch alarms for Backend Stack: Queue depth, Lambda errors/duration, WAF blocks

5.6: Verify Route 53 DNS Record

1. Navigate to Route 53 Console
2. Click on Hosted zones
3. Click on everyonecook.cloud
4. Verify A record exists:
   • Name: api-dev.everyonecook.cloud
   • Type: A (Alias)
   • Target: API Gateway domain name
   • Routing policy: Simple

Route 53 A record (Alias) pointing to API Gateway custom domain

Step 6: Test API Endpoint

Test the custom domain endpoint:

# Test API Gateway health endpoint (if exists)
curl https://api-dev.everyonecook.cloud/health

# Or test with browser
start https://api-dev.everyonecook.cloud

Expected response (if health endpoint exists):

{
  "status": "healthy",
  "environment": "dev",
  "timestamp": "2024-01-15T10:30:00Z"
}

Environment Differences

This guide uses Development (dev) environment as the example. Here are the key differences across environments:

Domain Names

Resource Naming

Configuration Differences

Deployment Commands

# Development
npx cdk deploy EveryoneCook-dev-Backend --context environment=dev

# Staging
npx cdk deploy EveryoneCook-staging-Backend --context environment=staging

# Production (requires approval)
npx cdk deploy EveryoneCook-prod-Backend --context environment=prod --require-approval broadening

Environment-Specific Considerations

Development

• CORS allows http://localhost:3000 for local frontend testing
• Data trace logging enabled for debugging
• Lower log retention (7 days) to reduce costs
• Resources deleted on stack removal (RemovalPolicy.DESTROY)

Staging

• Production-like configuration for pre-release testing
• Separate domain to avoid production interference
• Same security rules as production
• Resources deleted on stack removal

Production

• API Gateway caching enabled (0.5GB, 5-min TTL)
• Data trace logging disabled (cost optimization)
• 90-day log retention for compliance
• Resources retained on stack removal (RemovalPolicy.RETAIN)
• Stricter WAF rate limits
• No localhost CORS

Cost Analysis

Monthly Cost Breakdown (Dev Environment)

Production Cost Estimate

Next Steps

After deploying the Backend Stack:

1. Deploy Frontend Stack (Phase 5) - Next.js application on CloudFront
2. Deploy Observability Stack (Phase 6) - CloudWatch dashboards and alarms
3. Test API Integration - Verify all endpoints work correctly
4. Load Testing - Test performance and scaling
5. Security Audit - Review WAF rules and access controls

References

Infrastructure Code

• Backend Stack: infrastructure/lib/stacks/backend-stack.ts (2965 lines)
• Shared Layer Construct: infrastructure/lib/constructs/shared-layer.ts

Lambda Function Source Code (6 Business Functions)

• API Router: services/api-router/ - Request routing & JWT validation
• Auth User Module: services/auth-module/ - Authentication & user profiles
• Social Module: services/social-module/ - Posts, comments, friends, notifications
• Recipe AI Module: services/recipe-module/ - Recipe CRUD, AI generation, search
• Admin Module: services/admin-module/ - Content moderation, user management
• Upload Module: services/upload-module/ - S3 presigned URLs, file uploads

Worker Lambda Source Code (2 Active Workers)

• AI Worker: services/ai-module/workers/ - Bedrock Claude 3 Haiku integration
• Image Worker: services/image-worker/ - Image optimization (resize, compress)

Shared Dependencies

• Shared Layer: layers/shared-dependencies/ - AWS SDK v3, uuid, jsonwebtoken, jwks-rsa

Other Services (Not in Backend Stack)

• WebSocket Module: services/websocket-module/ - Real-time communication (separate stack)
• Shared Utilities: services/shared/ - Common utilities across services

Summary

The Backend Stack is the largest and most complex stack in the EveryoneCook infrastructure. It consolidates:

• API Gateway with custom domain (caching in prod only)
• 6 Lambda functions for business logic
• 2 active SQS queues for async processing (4 total with DLQs)
• 2 worker Lambda functions (AI Worker, Image Worker)
• WAF Web ACL for security (5 protection rules)
• CloudWatch monitoring and alarms

Actually Deployed: 8 Lambda functions, 4 SQS queues (2 active with workers), 1 WAF Web ACL, CloudWatch alarms

Development Environment Checklist

• Prepare all Lambda deployment packages (8 functions + 1 layer)
• Review dev environment configuration
• Verify caching is disabled (prod only)
• Test each Lambda function independently
• Monitor CloudWatch alarms
• Verify WAF rules don’t block legitimate traffic
• Test localhost CORS (dev only)

For Staging/Production Deployment

• Review Environment Differences
• Enable API Gateway caching (prod only)
• Disable data trace logging (prod only)
• Set appropriate log retention (90 days for prod)
• Update WAF rate limits (higher for prod)
• Remove localhost from CORS
• Use --require-approval broadening for production

Deployment Order: DNS → Certificate → Core → Auth → Backend → Frontend → Observability

Environments: This guide demonstrates dev deployment. Repeat for staging and prod with appropriate configurations.
